Circuit Schematic

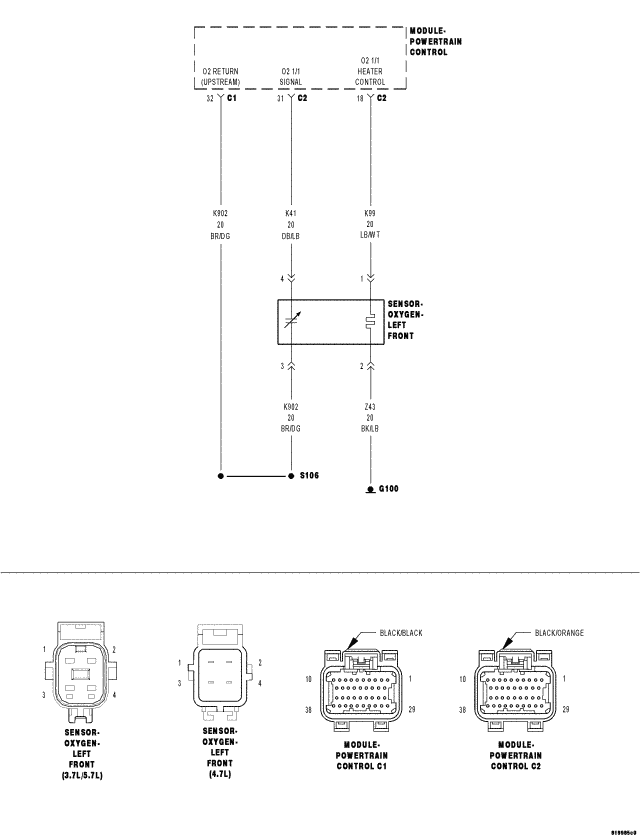

Fig 1: O2 Sensor 1/1 Heater Circuit Schematic

GC0058118

Courtesy of CHRYSLER LLC
