P0461-Fuel Level Sensor 1 Performance
›
Circuit Schematic
Circuit Schematic

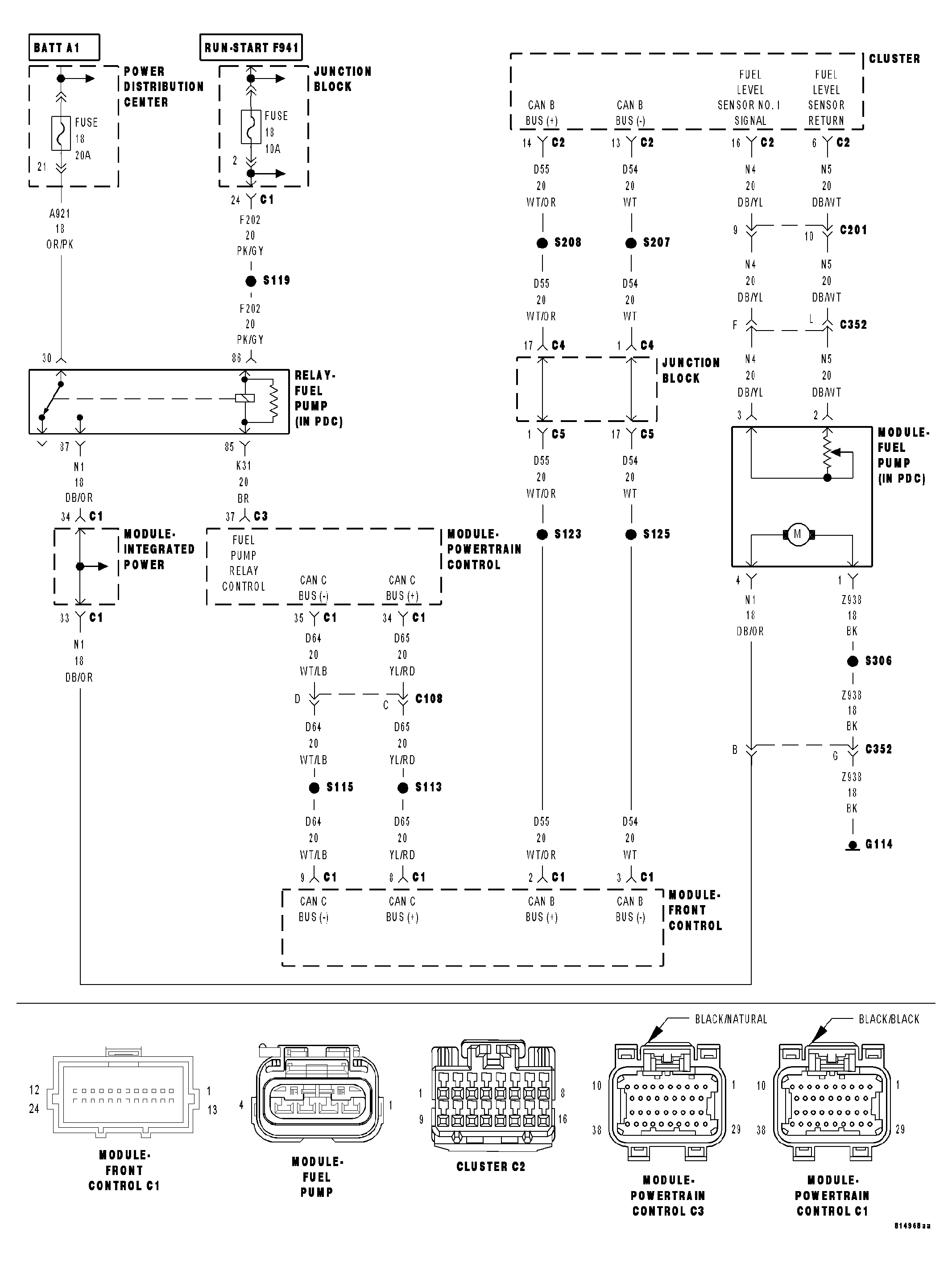

Fig 1: Fuel Pump Module & Fuel Pump Relay Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
