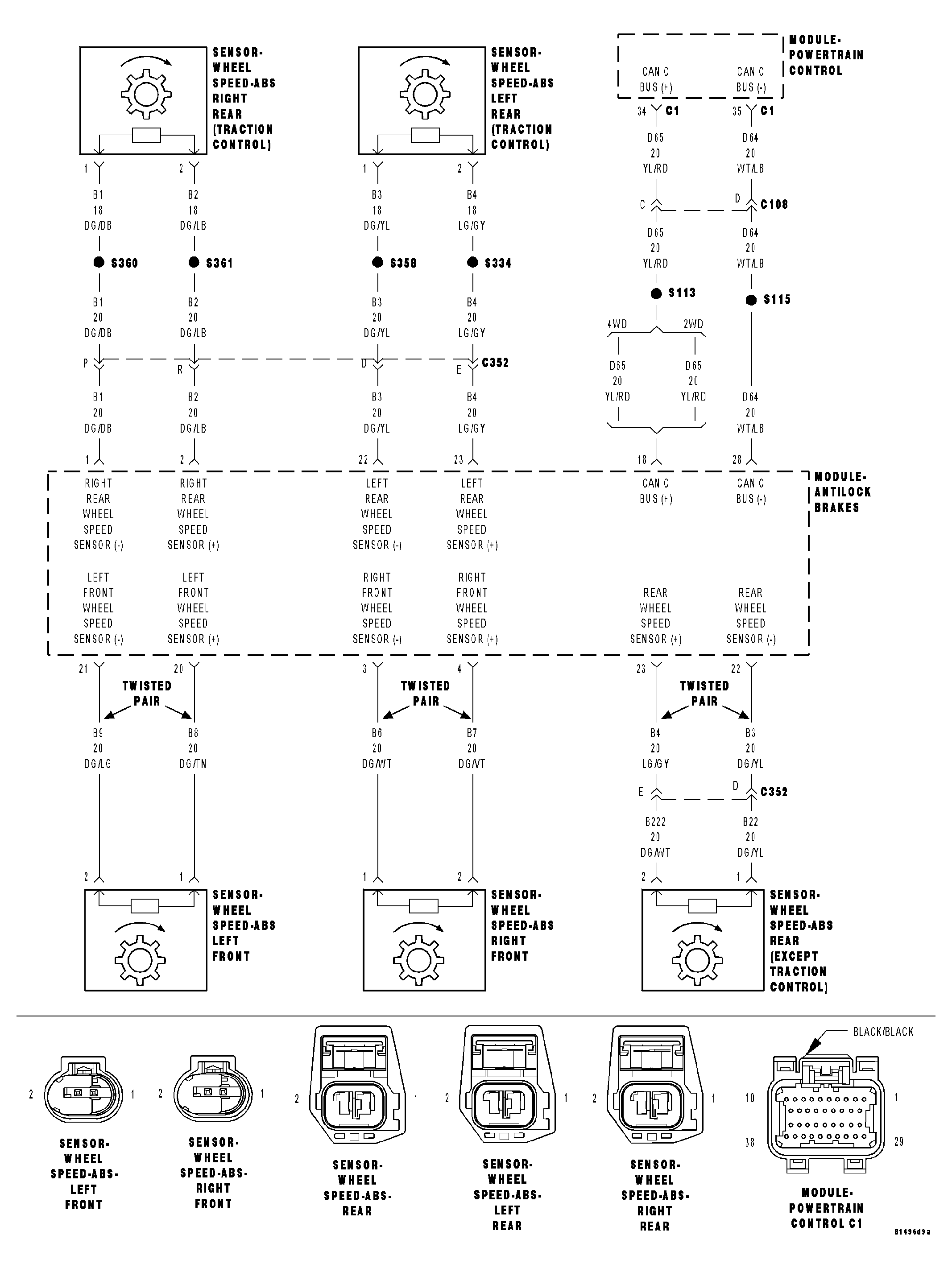

Home › Dodge and Ram › 2007 › Durango 4.7 P, 4WD, Part Time › Repair and Diagnosis › Engine Performance › System › DTCS P2504 To U1417 › U0121-Lost Communication With Anti-Lock Brake Module › Circuit Schematic
