Circuit Schematic

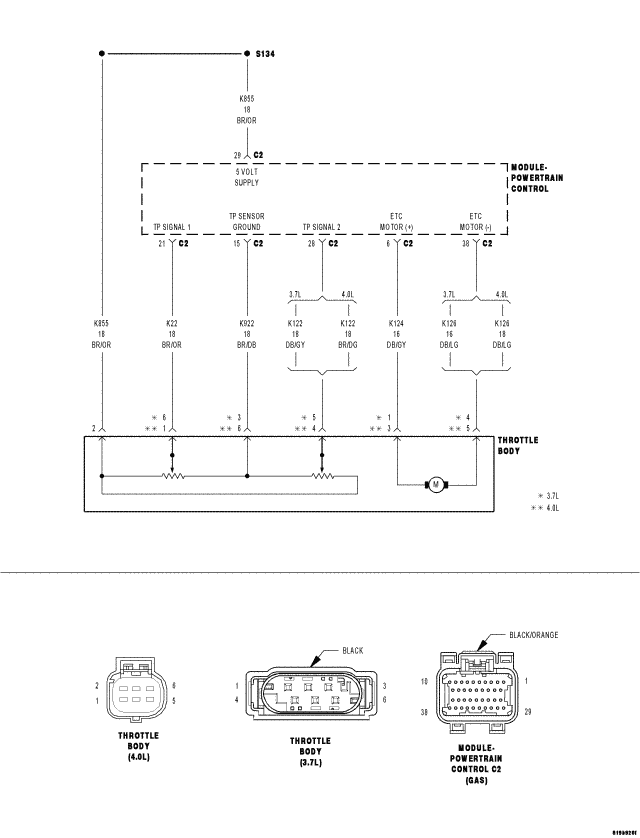

Fig 1: Throttle Position Sensor 1 Circuit Schematic
GC0062072Courtesy of CHRYSLER LLC
