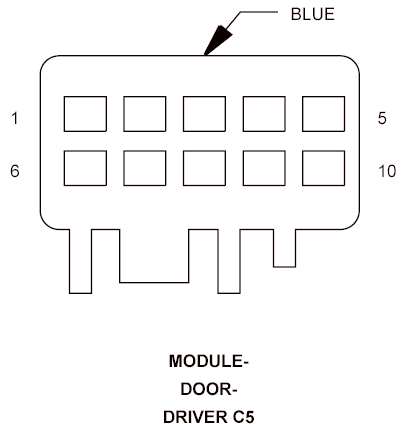

Driver Door Module Connector End View (C5)

MODULE-DOOR-DRIVER C5 - BLUE 10-WAY FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	D500 20WT	LIN BUS
2	D501 20WT/LG	LIN BUS RETURN
3	-	-
4	-	-
5	-	-
6	-	-
7	-	-
8	-	-
9	-	-
10	-	-
