B2102-Ignition Run/Start Input Circuit High: Notes

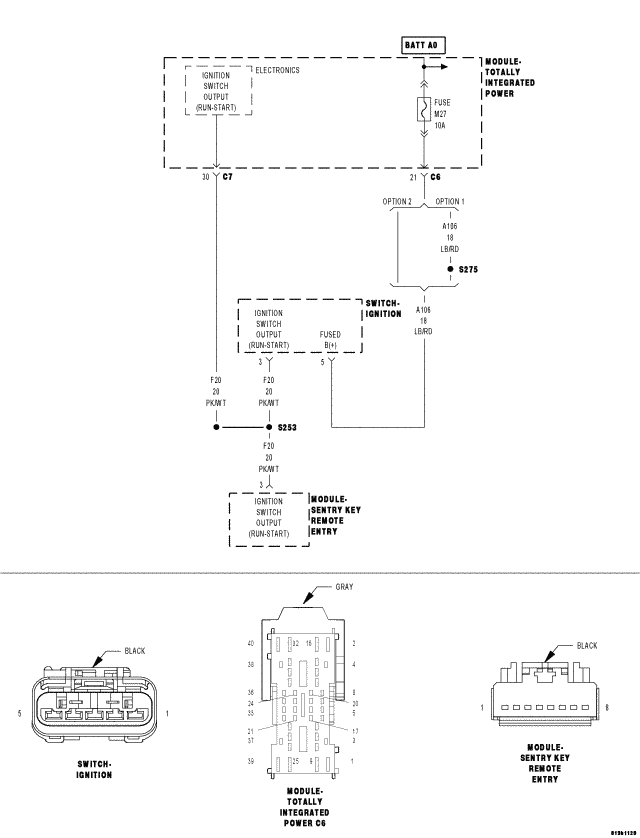

Fig 1: Identifying Ignition Run/Start Input Circuit
GC0061562Courtesy of CHRYSLER LLC
