Exhaust System: Description: Description

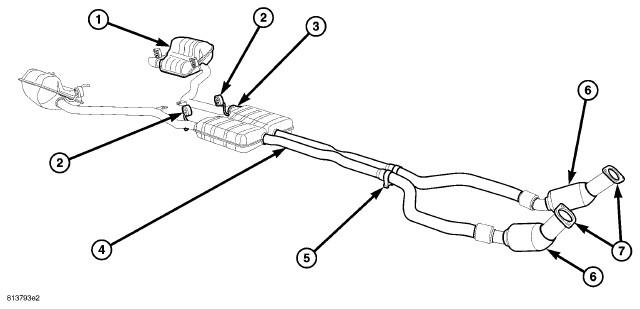

Fig 1: Exhaust System - V8 Dual System

Courtesy of CHRYSLER GROUP, LLC

The exhaust system consists of:

• Front exhaust pipes (4)
• Resonators (1)
• RH muffler and resonator assembly (4)
• Band clamp (5)
• Isolators (2)
• Ball flange (3)

The LH resonator (1) is serviced as an assembly.
