0600-O2 Sensor Upstream Connectors May Be Reversed: Notes

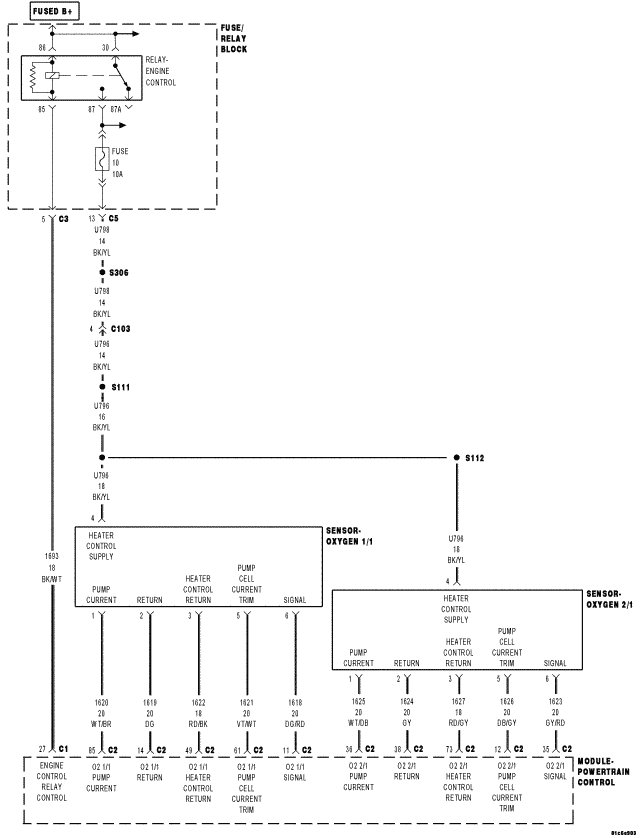

Fig 1: O2 Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS article.

1. When Monitored:

   Engine running.

2. Set Condition:

   Down stream O2 sensors respond to other bank O2 sensor changes.

Always perform the PRE-DIAGNOSTIC TROUBLESHOOTING PROCEDURE before proceeding.
