SWITCH, Speed Control: Installation: Installation

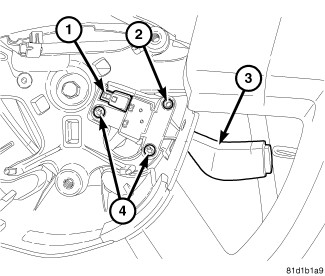

Fig 1: Identifying Speed Control Switch Screws & Electrical Connector

Courtesy of CHRYSLER LLC

1. Install speed control switch (3) onto the locating pin (2) in the steering wheel. Make sure rubber seal is in place around switch.
2. Install speed control switch mounting screws (4) and tighten screws to 1.6 N.m (15 ins. lbs.).
3. Connect electrical connector (1) to speed control switch (3).

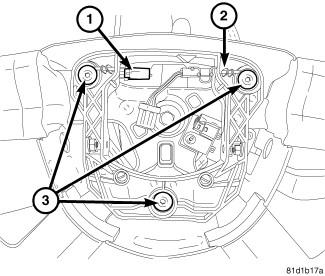

   Fig 2: Removing/Installing Horn Switch

   Courtesy of CHRYSLER LLC
4. Install horn switch (2) to steering wheel.
5. Connect electrical connector (1) to horn switch (2).
6. Install horn switch mounting screws (3) and tighten screws to 8 N.m (71 ins. lbs.).
   Fig 3: Removing/Installing Speed Control Switch

   Courtesy of CHRYSLER LLC
7. Install driver's side airbag. Refer to Restraints/AIR BAG, Driver - Installation .
8. Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
9. Verify vehicle and system operation.
