P0116-Engine Coolant Temperature Sensor Performance: Notes

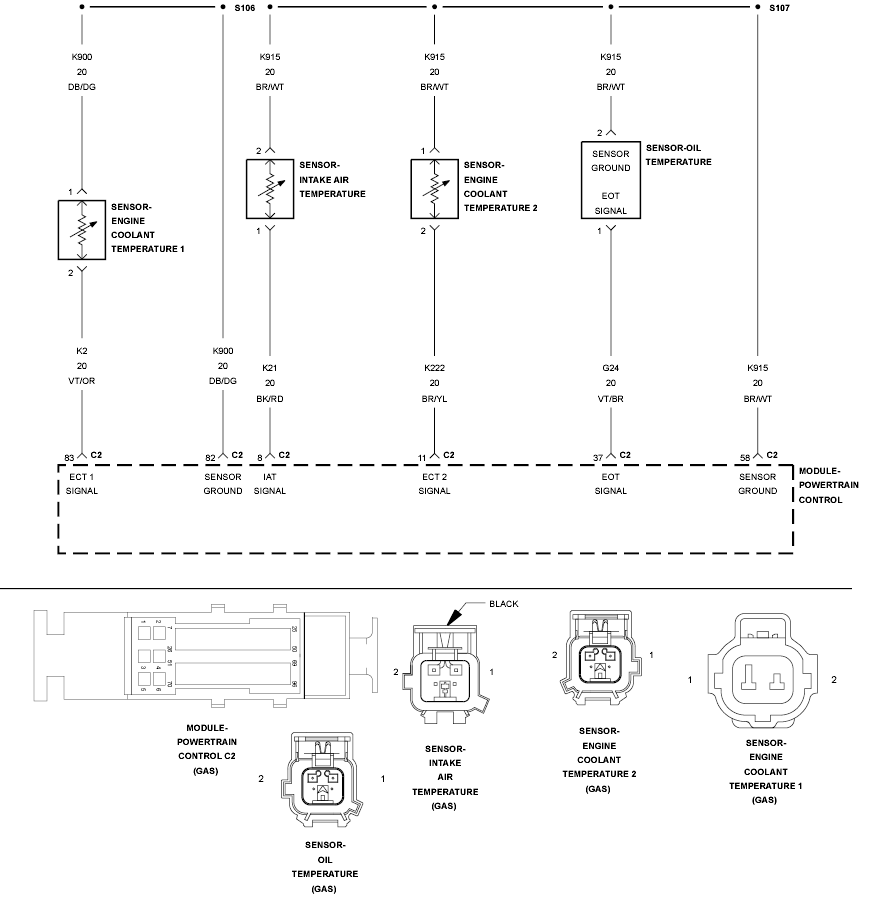

Fig 1: Temperature Sensors Circuit
GC0099754Courtesy of CHRYSLER LLC
