P0121-Throttle Position Sensor 1 Performance: Notes

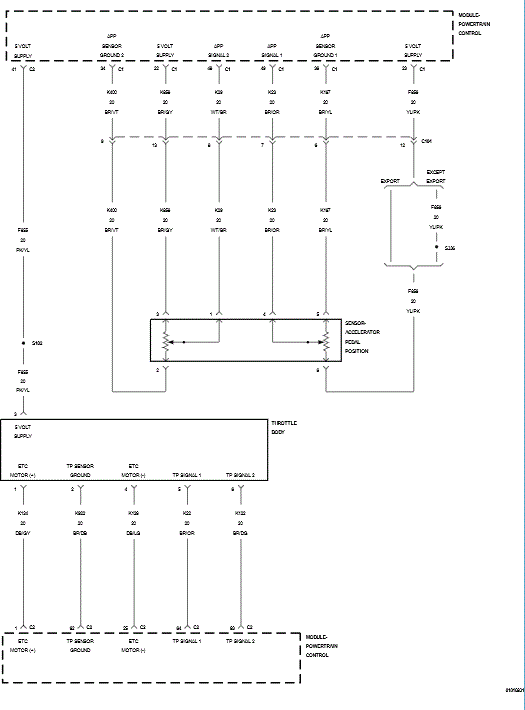

Fig 1: Throttle Position Sensor Circuit
GC0099767Courtesy of CHRYSLER LLC
