P0456-EVAP System Small Leak: Notes

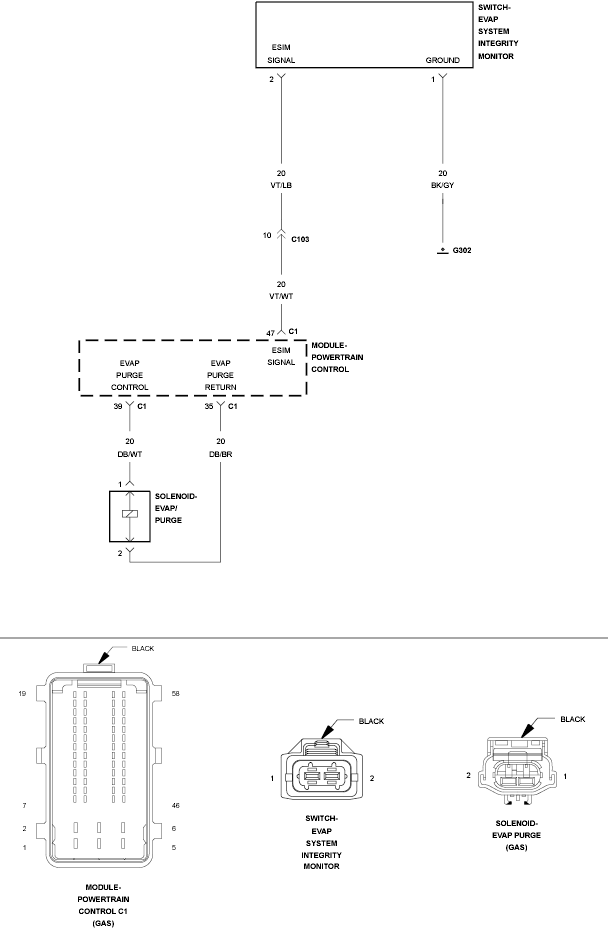

Fig 1: EVAP Purge Solenoid Circuit
GC0099897Courtesy of CHRYSLER LLC
