P0523-Engine Oil Pressure Switch Circuit High: Notes

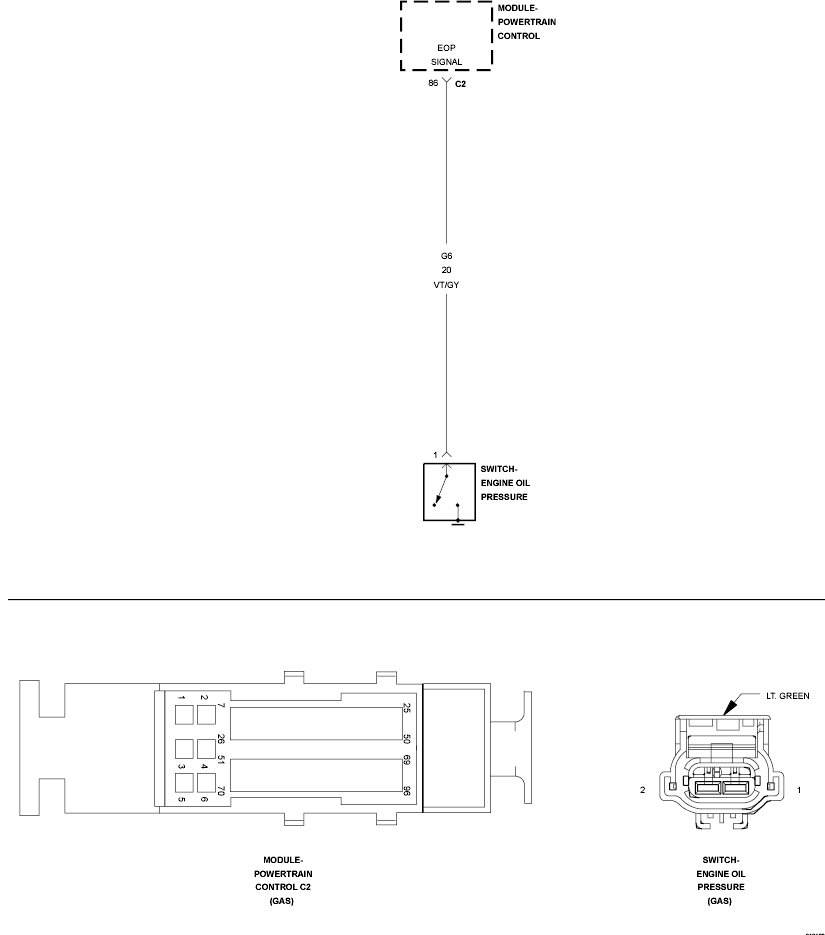

Fig 1: Engine Oil Pressure Switch Circuit
GC0099942Courtesy of CHRYSLER LLC
