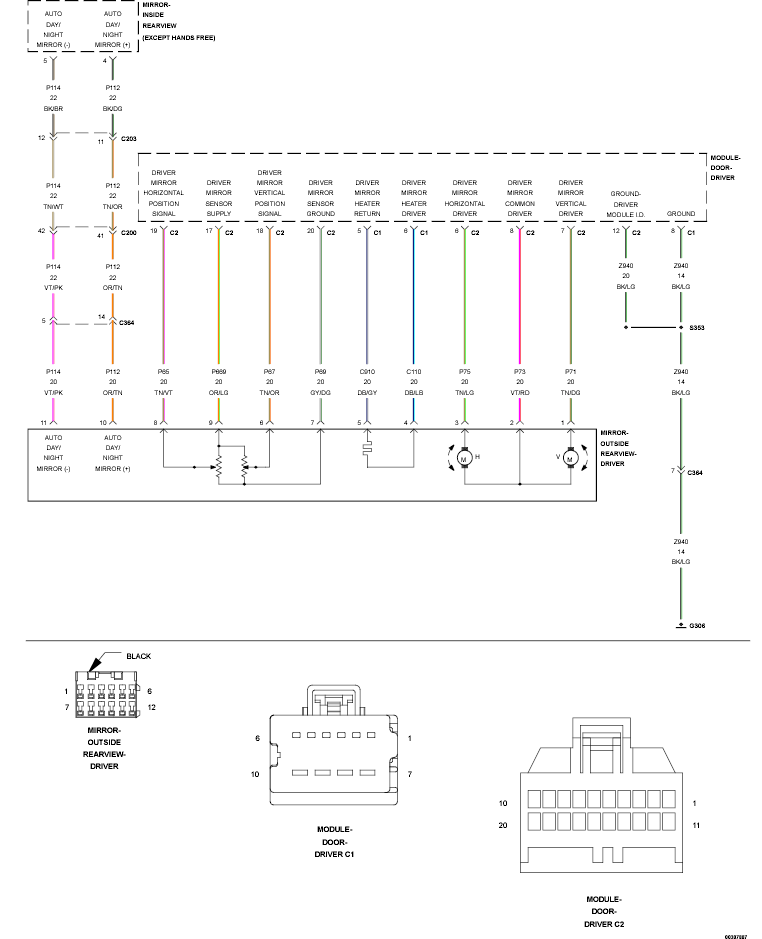

Home › Dodge and Ram › 2009 › Durango Base, 3.7 K › Repair and Diagnosis › Body & Frame › Windows › Driver Door Module (DDM) - Electrical Diagnostics › DTC Troubleshooting › B1D0F-Driver Mirror Horizontal Position Sensor Input Circuit Low › Circuit Schematic
