P182E-Range Internal Mode Switch Range/Performance: Notes

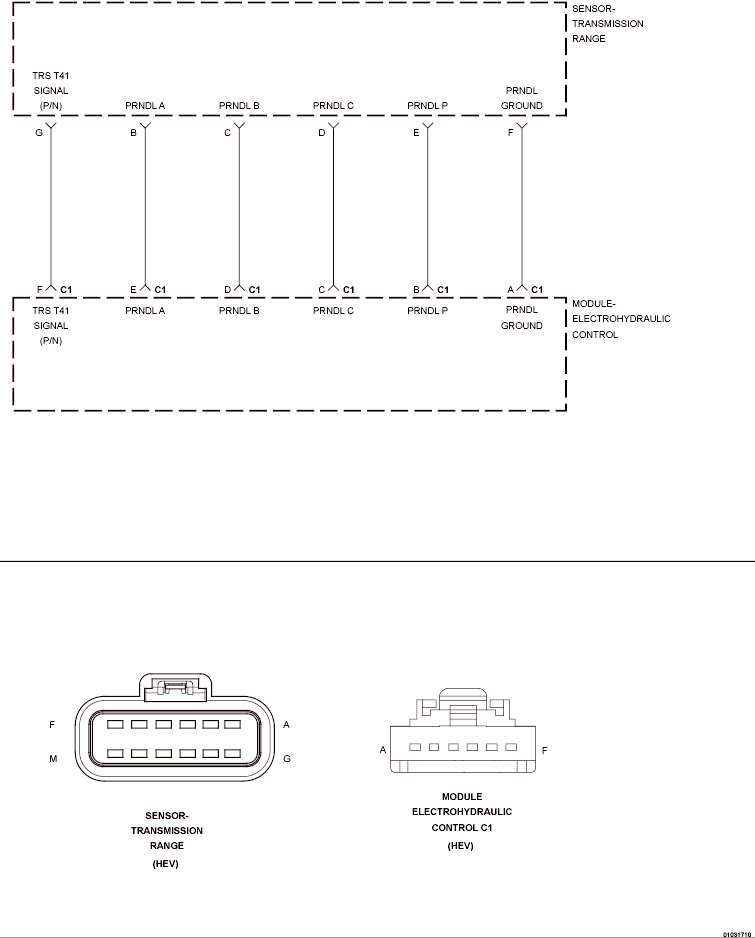

Fig 1: Range Internal Mode Switch P Circuit
GC0106967Courtesy of CHRYSLER LLC
