CYLINDER, Ignition Lock: Installation: Installation

Fig 1: Key Cylinder With Key In Cylinder

Courtesy of CHRYSLER LLC

The ignition key (2) must be in the key cylinder (1) for cylinder installation.

1. Install the key cylinder (1) into the housing (3) using care to align the end of the key cylinder with the ignition switch.
2. Push the key cylinder (1) in until it clicks.

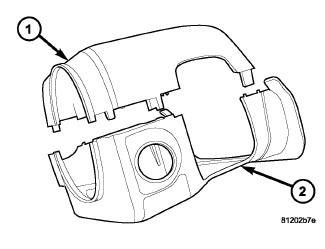

   Fig 2: Upper & Lower Shrouds

   Courtesy of CHRYSLER LLC
3. Replace the lower shroud.
4. Install the tilt lever handle.
   Fig 3: Locating Steering Column Opening Cover

   Courtesy of CHRYSLER LLC
5. Install the steering column opening cover. Refer to Body/Instrument Panel/COVER, Steering Column Opening - Installation .
6. Reconnect the battery.
