P0711-Transmission Temperature Sensor Performance: Notes

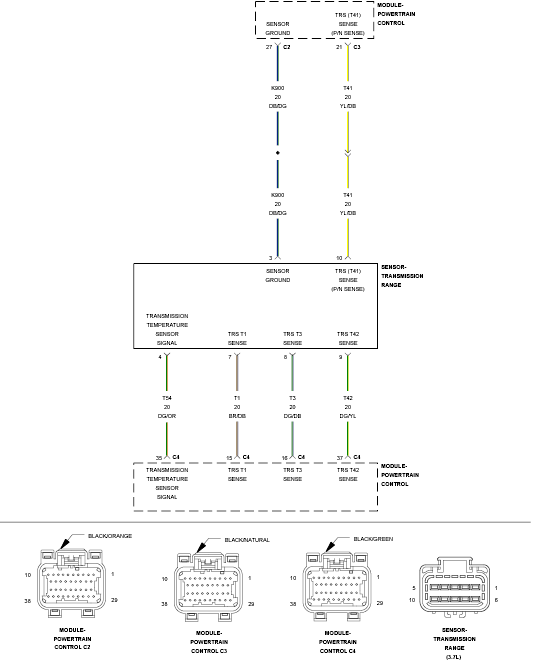

Fig 1: Transmission Temperature Sensor Circuit
GC0090494Courtesy of CHRYSLER LLC
