P0934-Line Pressure Sensor Circuit Low: Notes

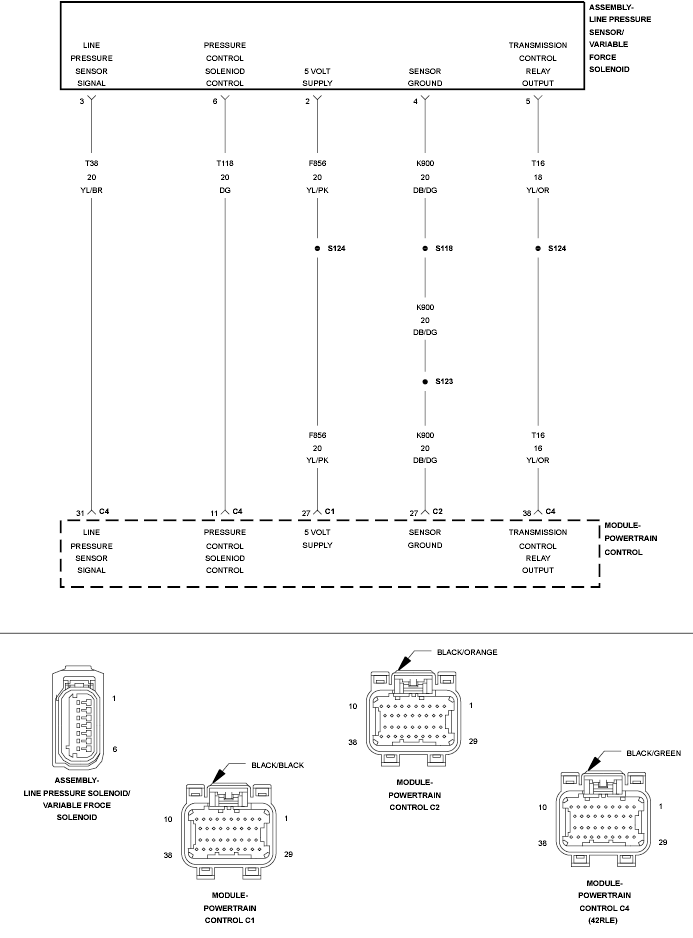

Fig 1: Line Pressure Sensor Circuit
GC0090528Courtesy of CHRYSLER LLC
