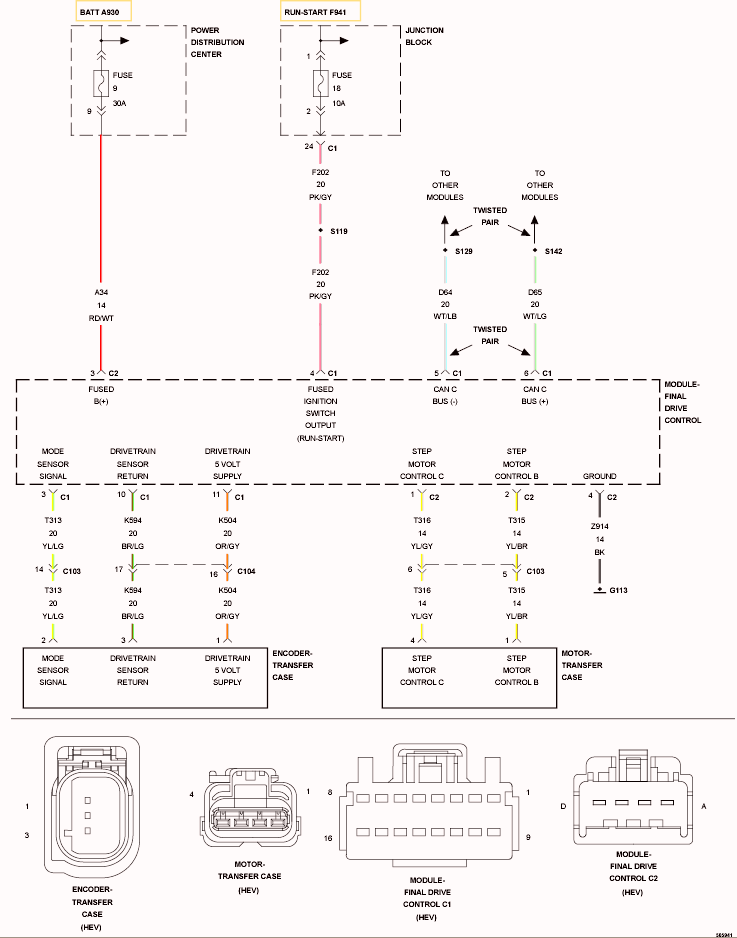

Home › Dodge and Ram › 2009 › Durango Hybrid › Repair and Diagnosis › Engine Performance › System › Final Drive Control Module (FDCM) - Electrical Diagnostics › DTC Troubleshooting › C140D-Transfer Case Motor Control Circuit Open › Circuit Schematic
