Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

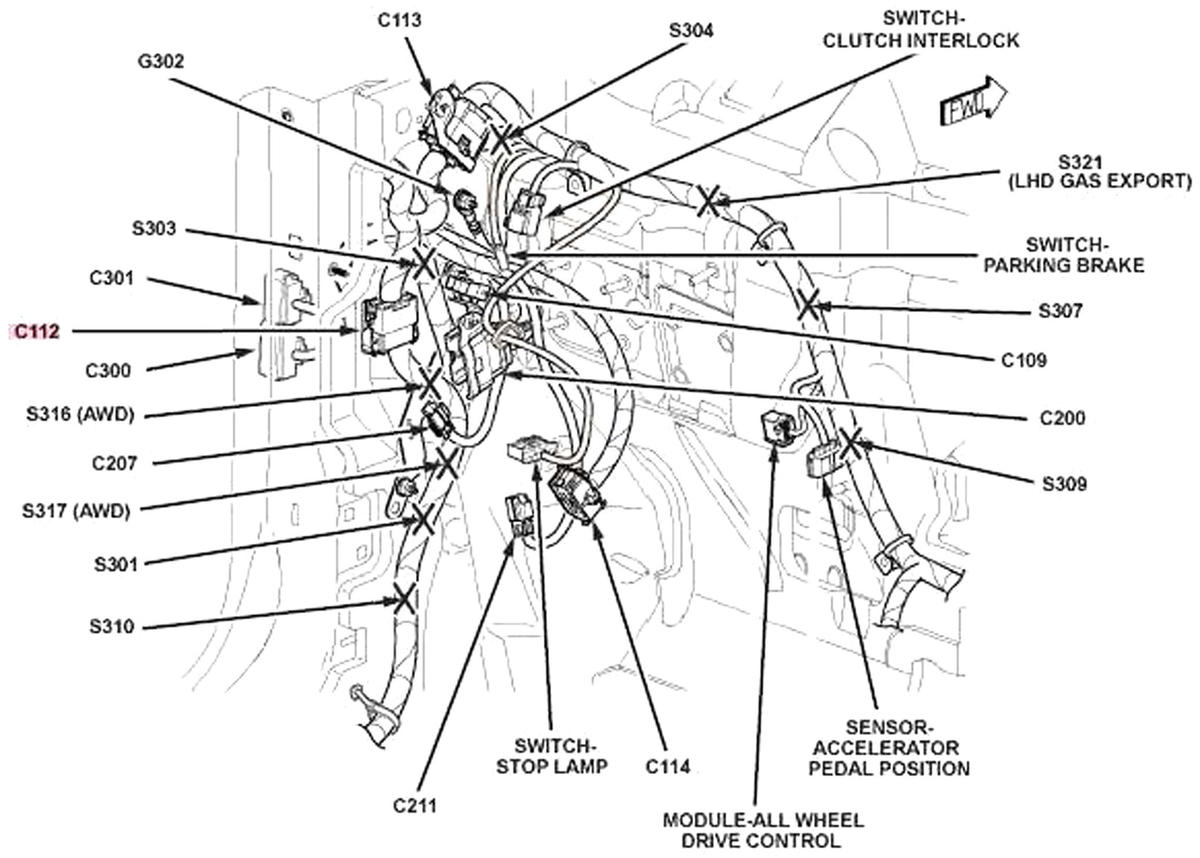

| All Wheel Drive Control Module | Left side of dash. See Figure. |

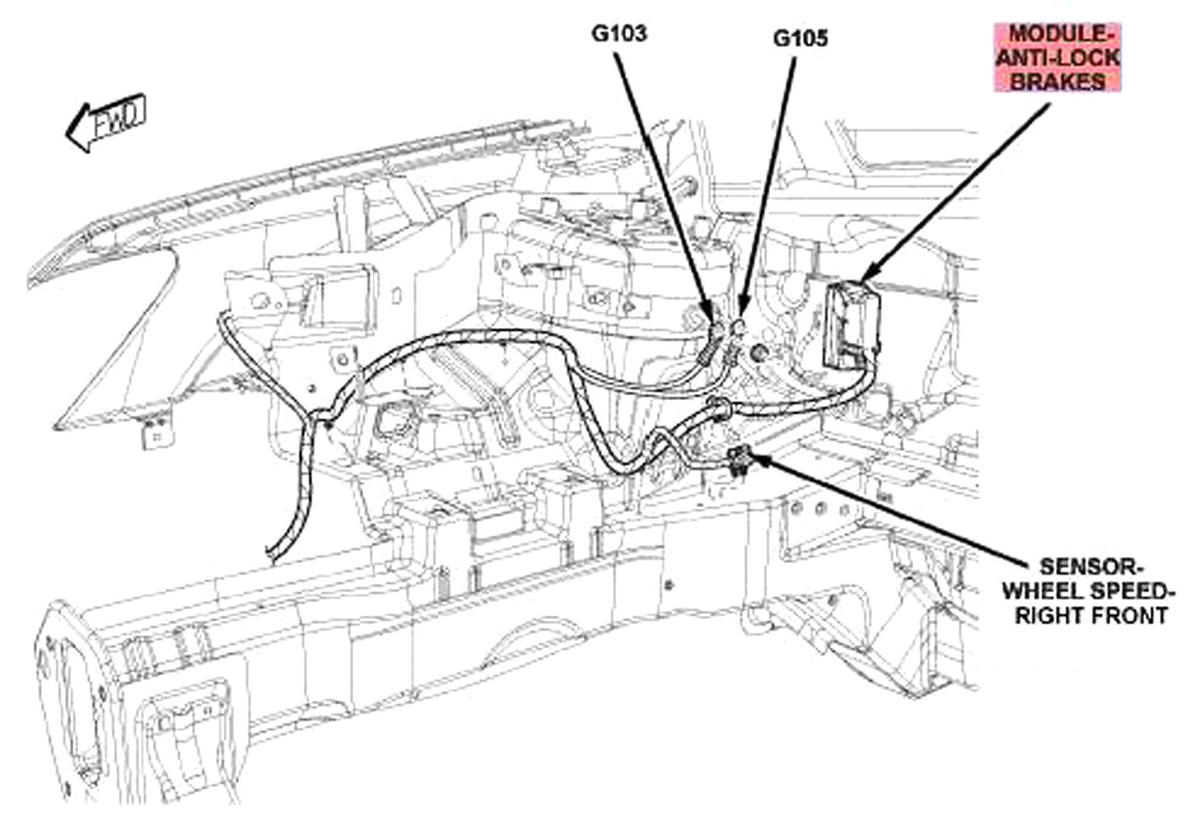

| Anti-Lock Brakes Module | Right rear of engine compartment. See Figure. |

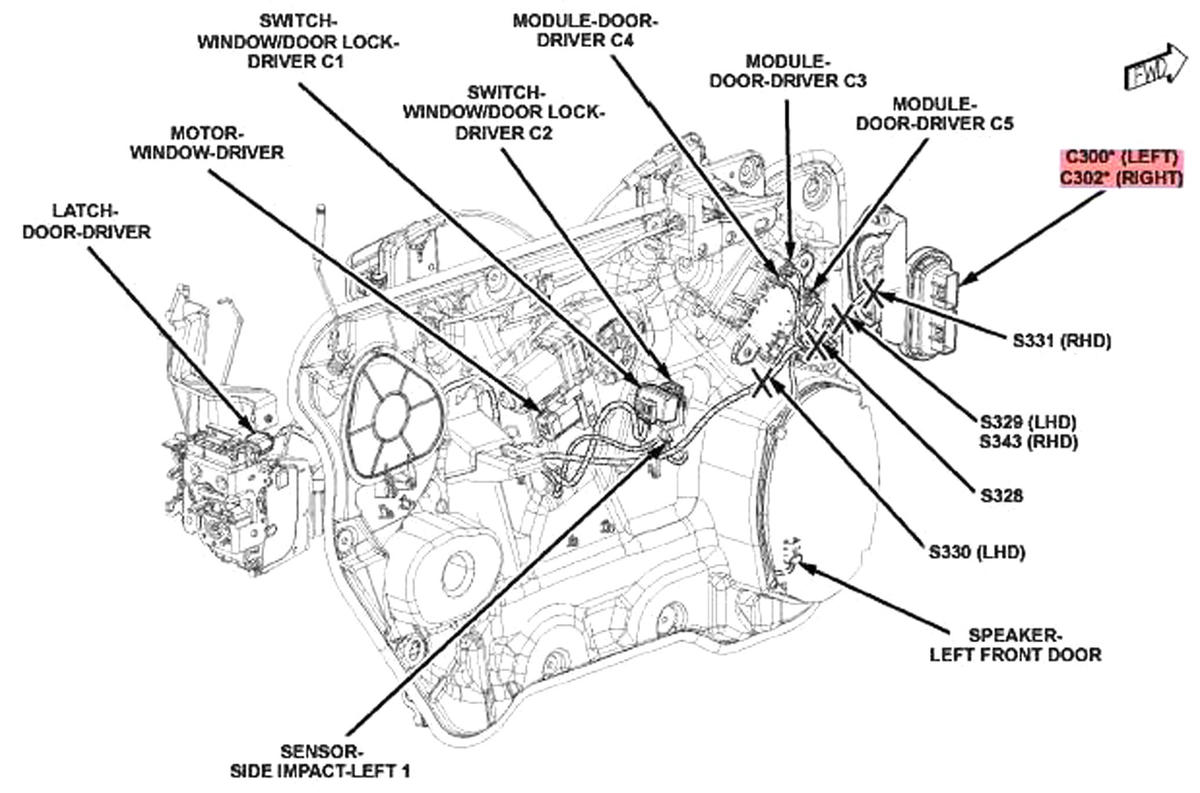

| Driver Door Module | Driver's door. See Figure. |

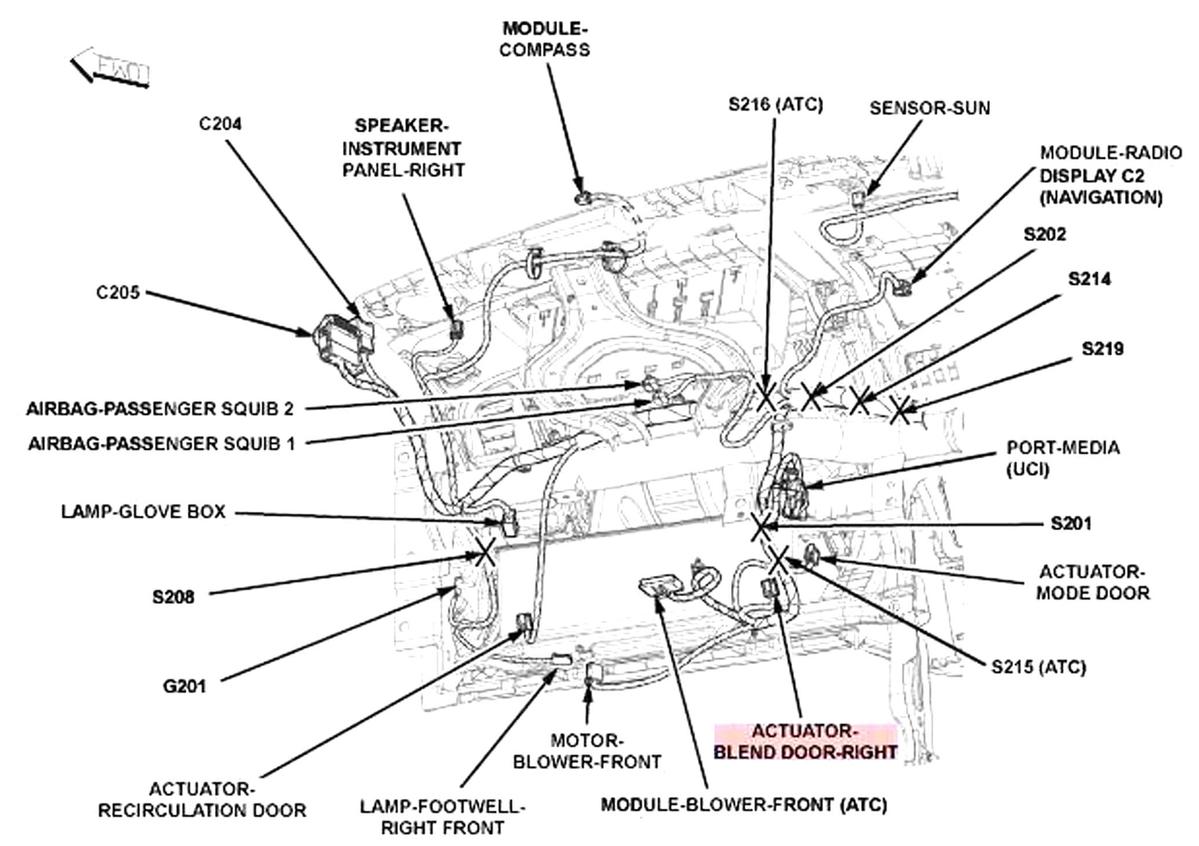

| Front Blower Power (ATC) Module | Right end of HVAC. See Figure. |

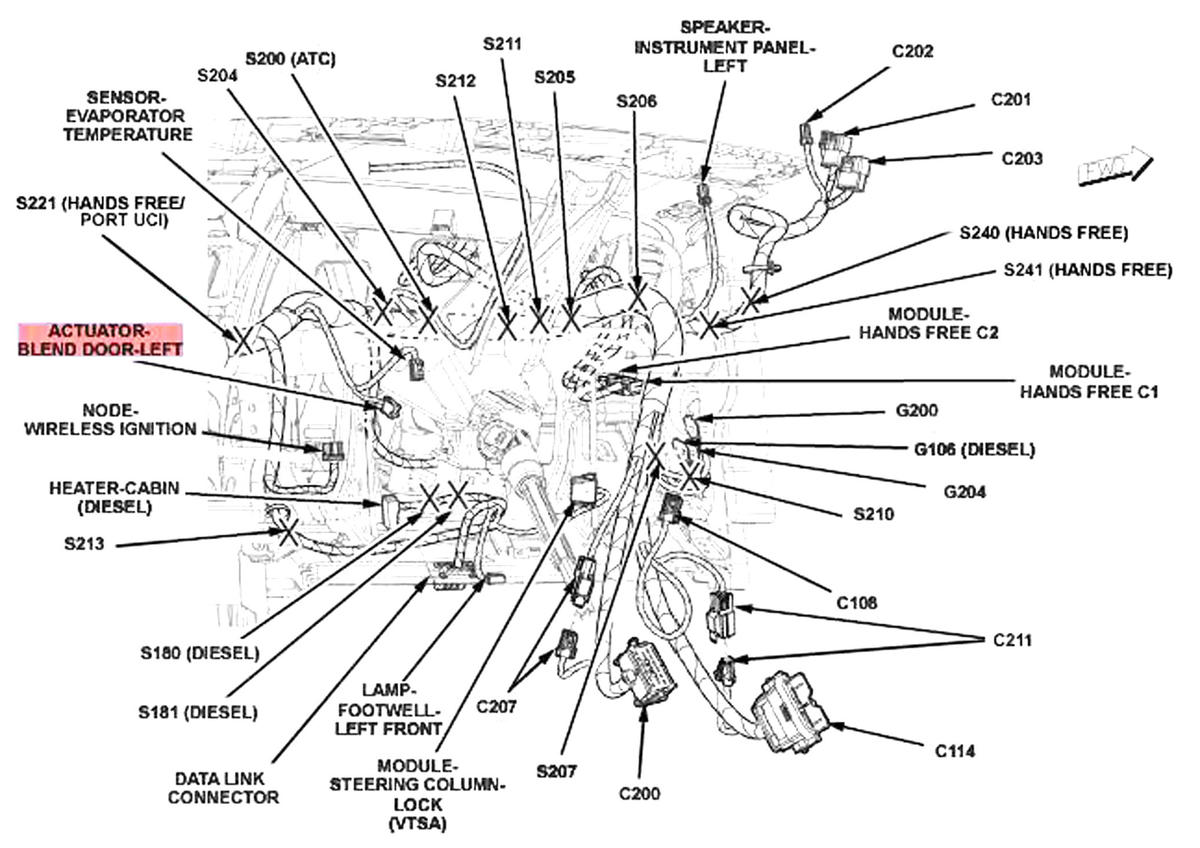

| Hands Free Module | Left end of dash. See Figure. |
| Heated Seats Module | Under driver's seat. See Figure. |

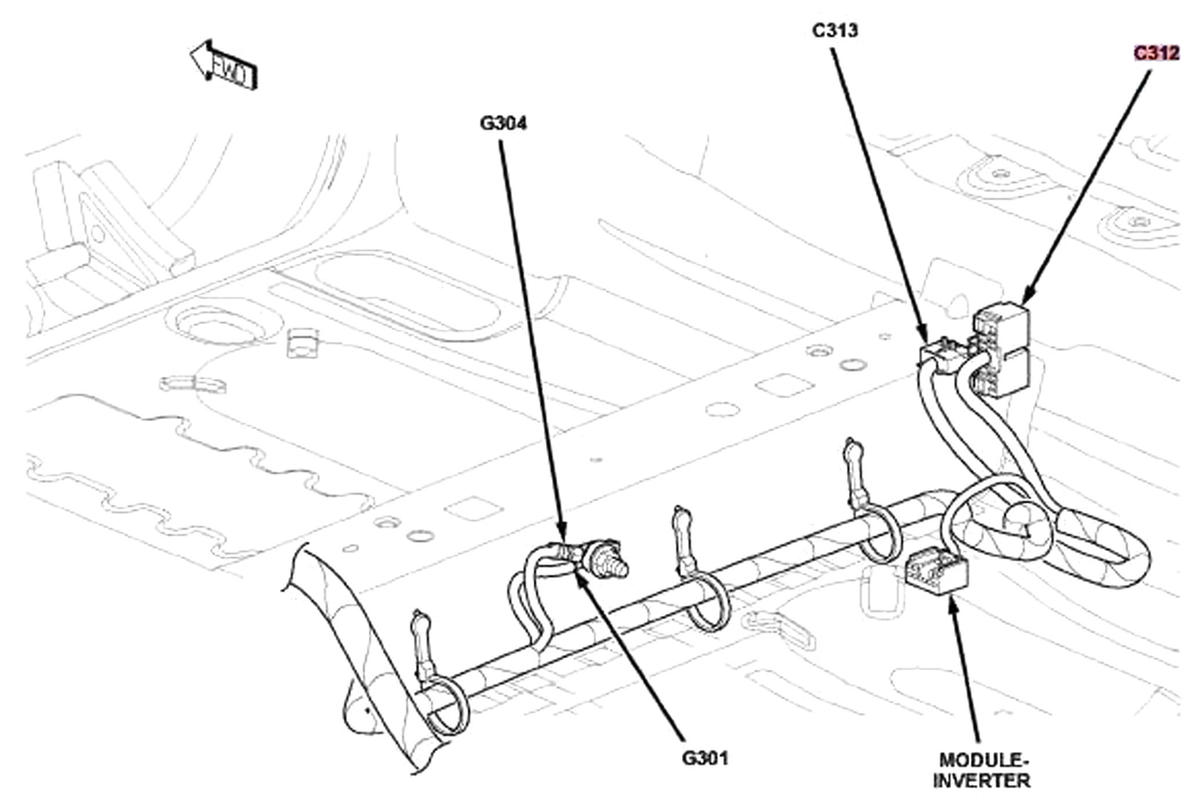

| Inverter Module | Under driver's seat. See Figure. |

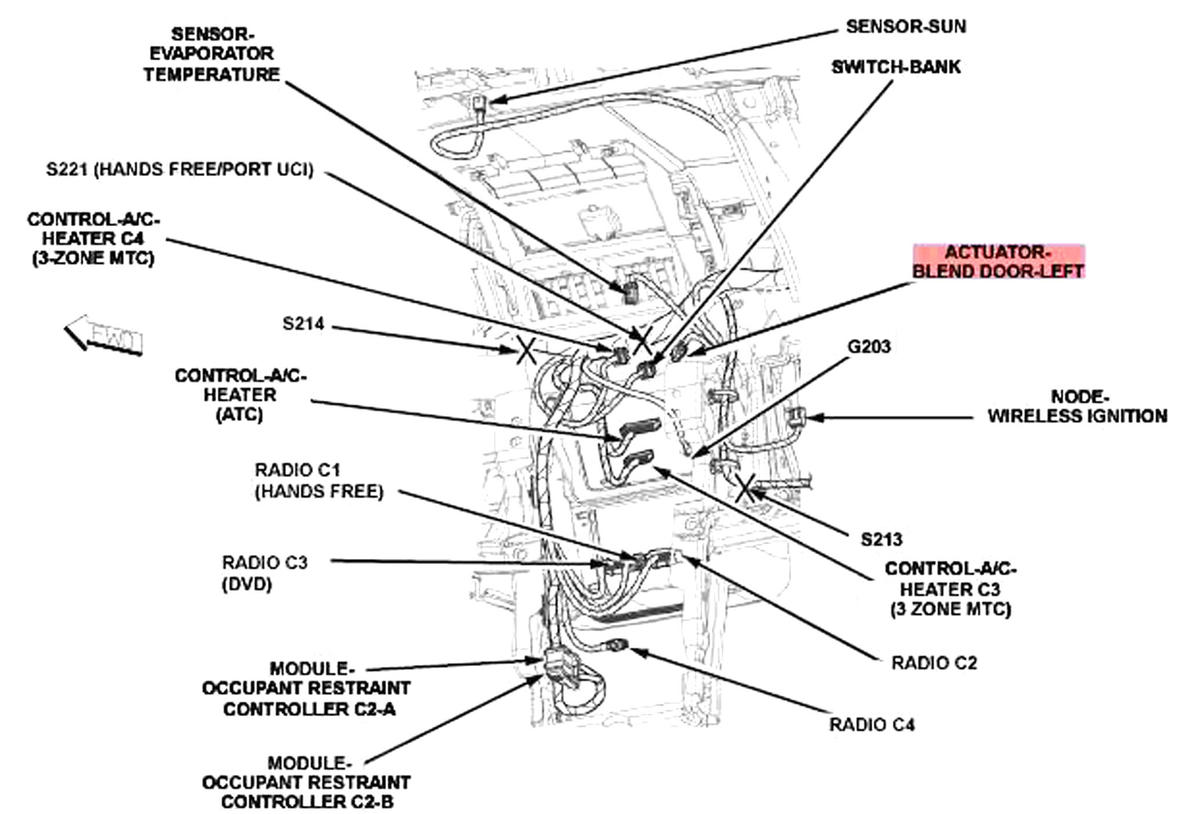

| Occupant Restraint Controller Module | Center of dash. See Figure. |

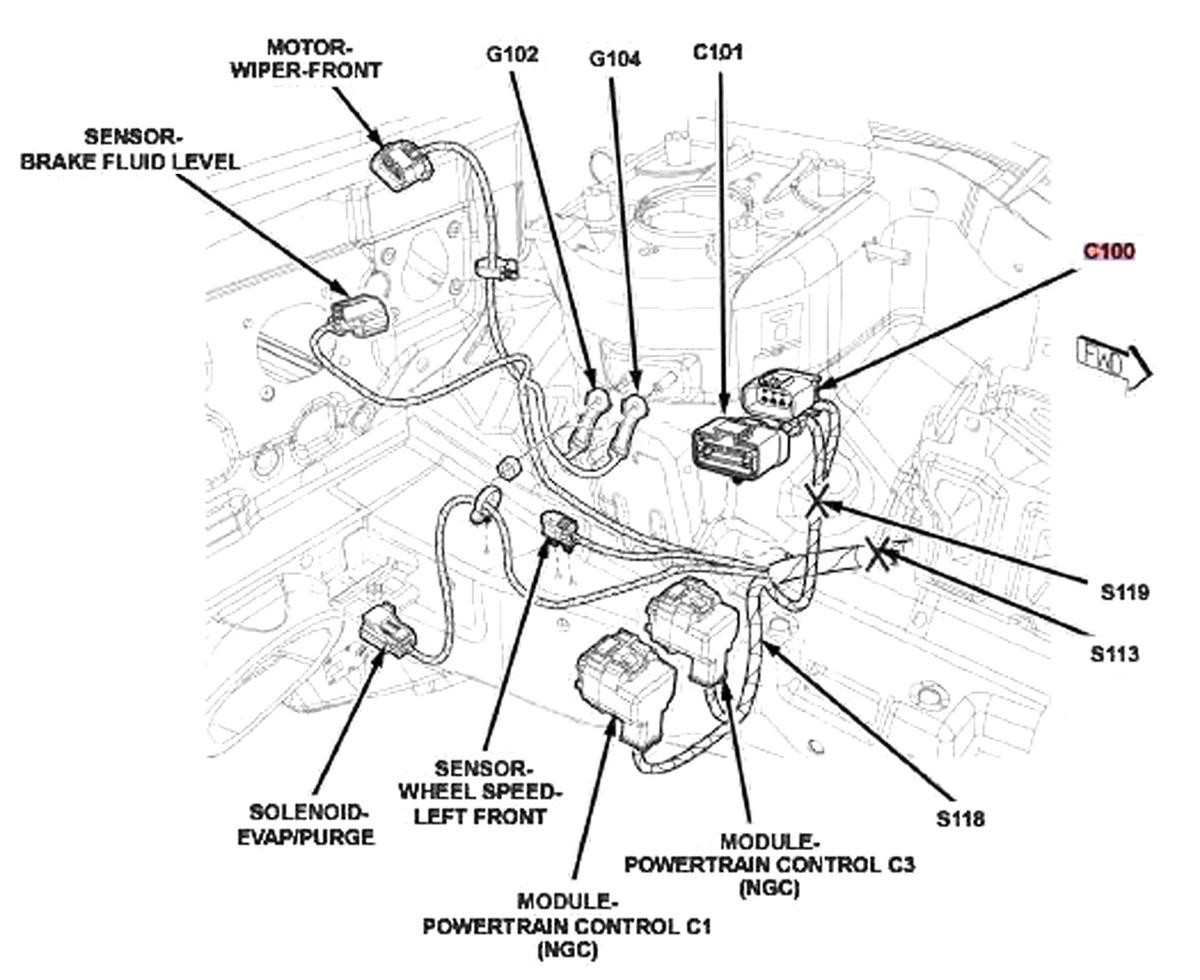

| Powertrain Control Module | Left side of engine compartment. See Figure. |

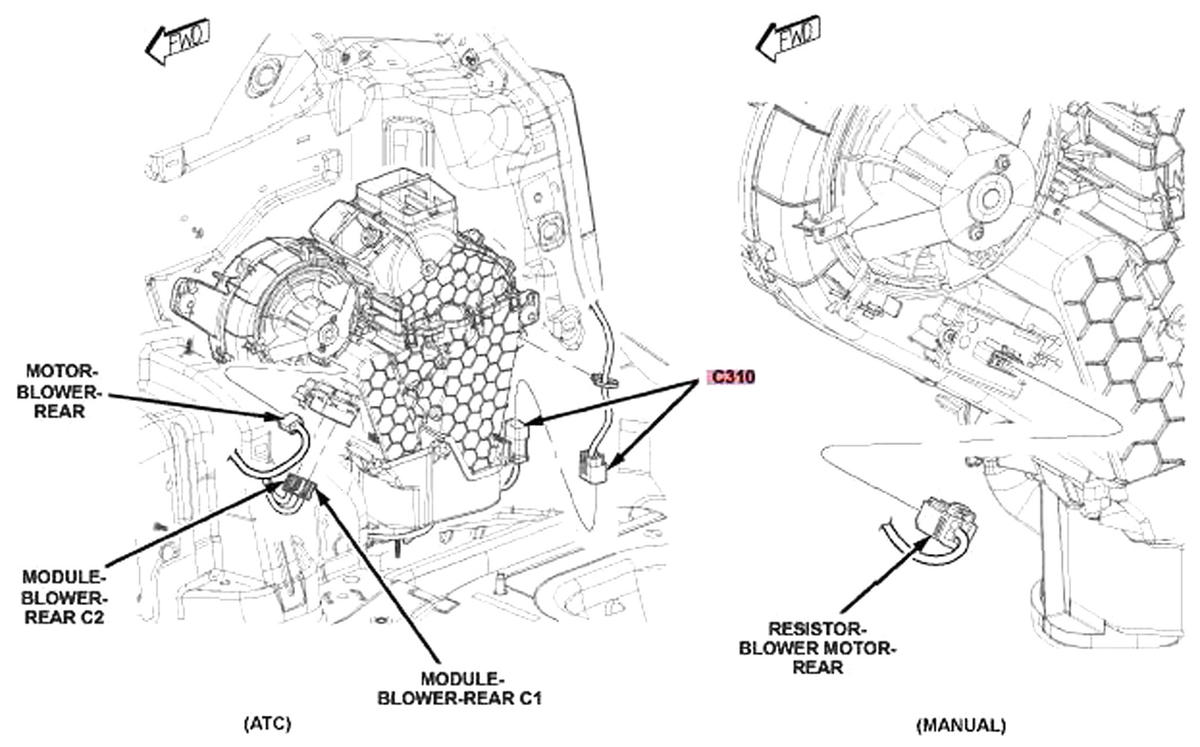

| Rear Blower Module | Right quarterpanel. See Figure. |
| Steering Column Lock Module (VTSA) | On steering column. See Figure. |

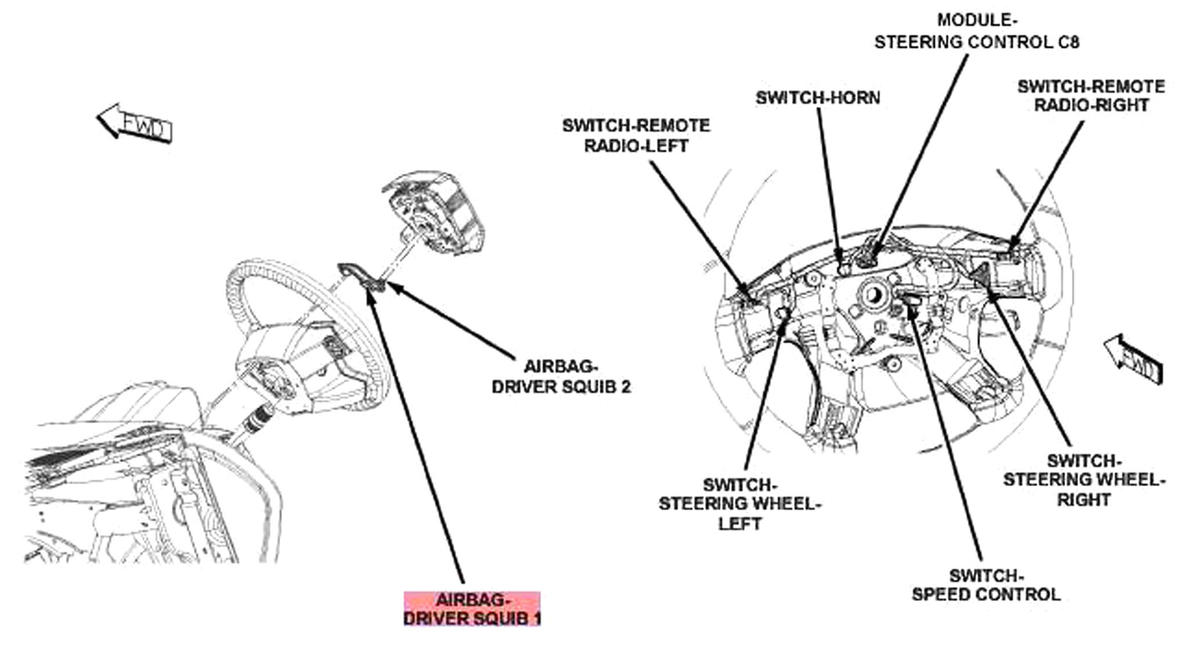

| Steering Control Module | In steering wheel. See Figure. |

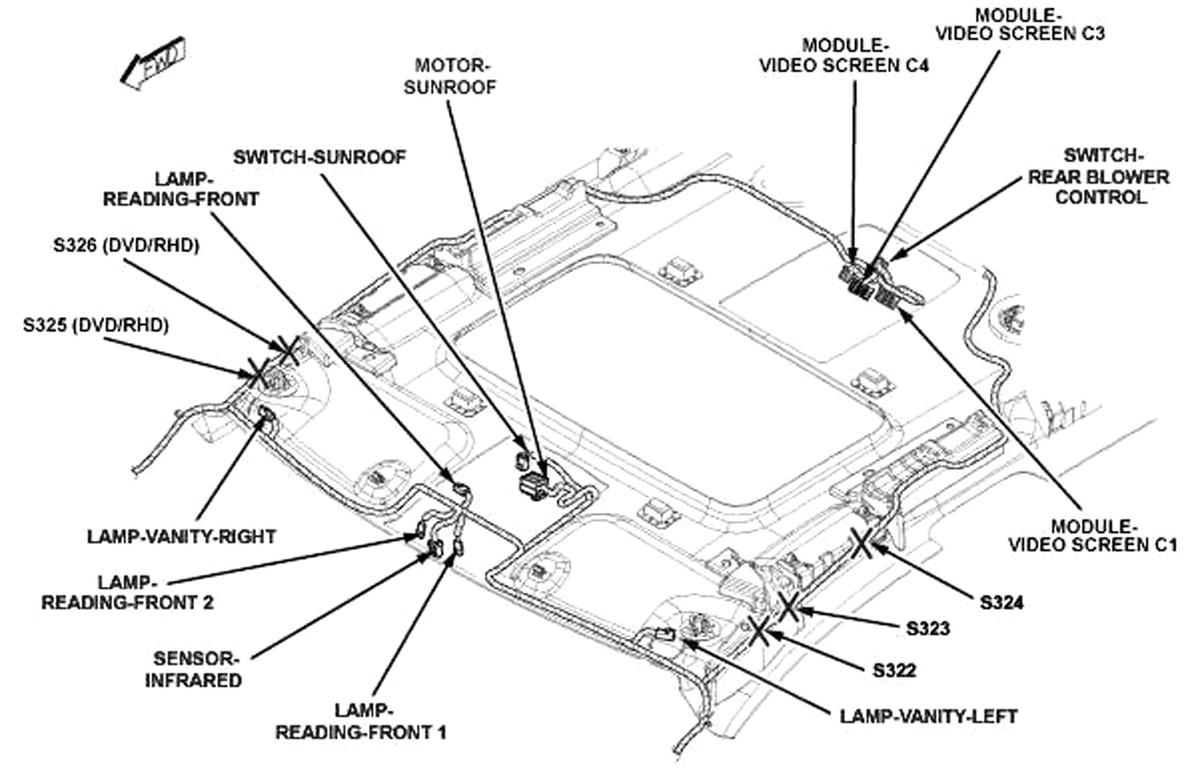

| Video Screen Module | Center rear of roof. See Figure. |
