CAPACITOR, Ignition: Installation: 2.4L

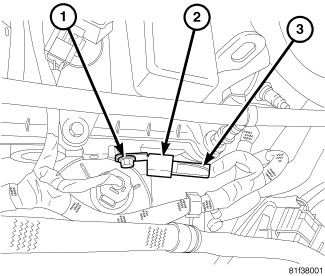

Fig 1: Capacitor 2.4L

Courtesy of CHRYSLER LLC

1 - Bolt

2 - Capacitor

3 - Connector

1. Install ignition coil capacitor (2) and bolt (1), tighten bolt to 10 N.m (88.5 ft. lbs.).
2. Connect electrical connector (3).
3. Install engine cover.
4. Connect negative battery cable, tighten nut to 5 N.m (45 in. lbs.).
