DTC 9007: Terminal 15 Circuit Shorted Or Open: Notes

Courtesy of CHRYSLER LLC

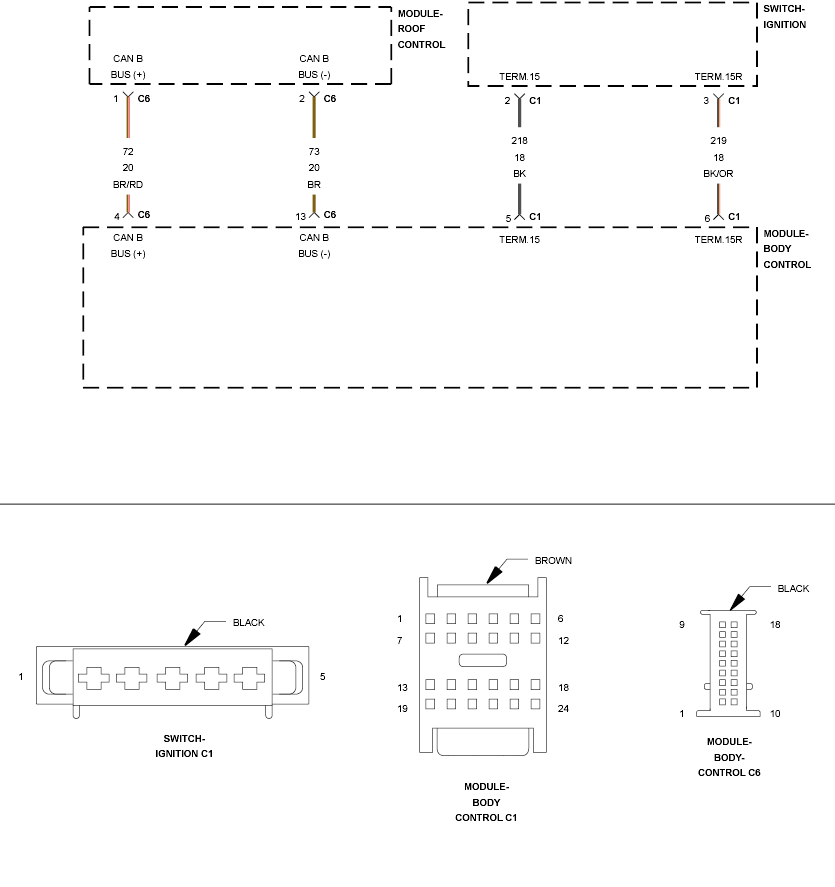

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .

• When Monitored:

  With the ignition on.

• Set Condition:

  The actual value of the Terminal 15 circuit supplied by the Body Control Module (BCM) over the CAN Bus is implausible.
