PUMP, Water: Installation: 6.1L

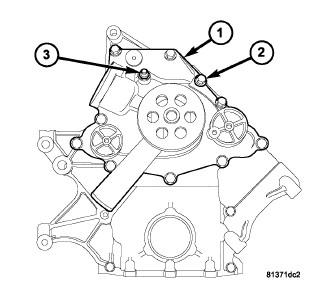

| 1 - WATER PUMP ASSEMBLY |
| 2 - BOLT |
| 3 - DOUBLE ENDED BOLT |
- Install water pump and mounting bolts (2). Tighten mounting bolts to 28 N.m (20 ft. lbs.).
- Make sure double ended bolt (3) is in the proper location. Tighten double ended bolt to 28 N.m (20 ft. lbs.).
- Install thermostat. See Cooling/Engine/THERMOSTAT - Installation .
- Install accessory drive belt. See Cooling/Accessory Drive/BELT, Serpentine - Installation .
- Install the radiator fan assembly. See Cooling/Engine/FAN, Cooling - Installation .
- Connect negative battery cable.
- Evacuate air and refill cooling system. See Cooling/Engine/PUMP, Water - Standard Procedure
- Check cooling system for leaks. See Cooling - Diagnosis and Testing
