VALVE, Exhaust Gas Recirculation (EGR) Airflow Control: Installation: Installation

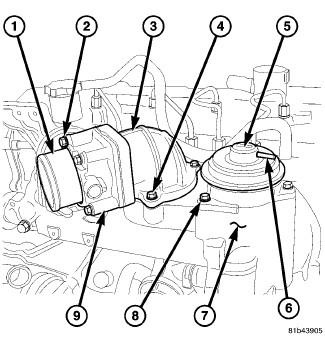

Fig 1: EGR Airflow Control Valve

Courtesy of CHRYSLER LLC

1. Clean mounting areas at bottom of air control valve and at intake manifold connecting housing (3).
2. Install new mounting gasket between EGR air control valve (9) and intake manifold connecting housing (3).
3. Install the EGR air control valve and mounting bolts (2). Tighten bolts to 13 N.m (115 in. lbs.).

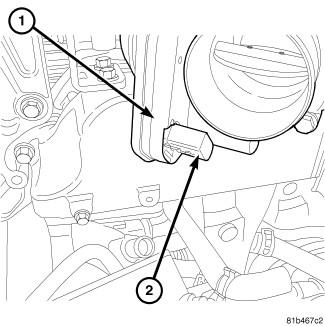

   Fig 2: Air Control Valve Electrical Connector

   Courtesy of CHRYSLER LLC
4. Connect air control valve electrical connector to control valve at point (2).

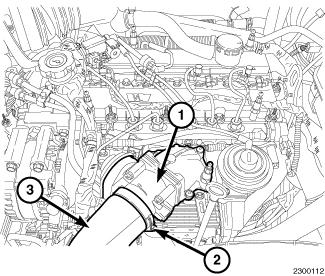

   Fig 3: Clamp, Inlet Tube & Air Control Valve

   Courtesy of CHRYSLER LLC
5. Connect the inlet tube (3) to air control valve (1) and tighten clamp (2).
6. Install the engine cover.
7. Connect negative battery cable.
