SWITCH, Ignition: Installation: Installation

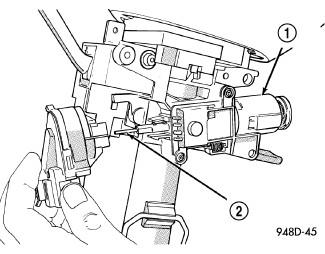

Fig 1: Ignition Switch Installation

Courtesy of CHRYSLER LLC

1 - LOCK CYLINDER HOUSING

2 - SHAFT

1. Ensure the ignition switch is in the RUN position and the actuator shaft in the lock housing is in the RUN position.
2. Carefully install the ignition switch. The switch will snap over the retaining tabs.

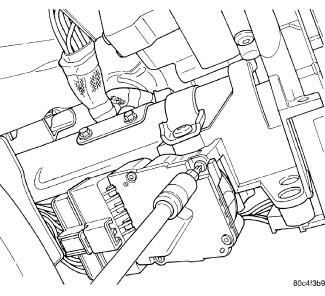

   Fig 2: Ignition Switch Mounting Screw

   Courtesy of CHRYSLER LLC
3. Install mounting screw.
4. Install electrical connectors to ignition switch.

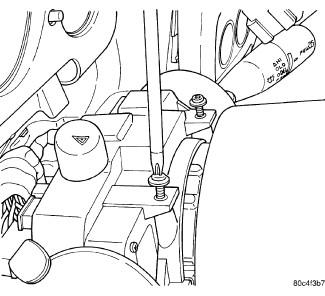

   Fig 3: Multi-Function Switch

   Courtesy of CHRYSLER LLC
5. Install the multi-function switch and tighten the 2 screws.

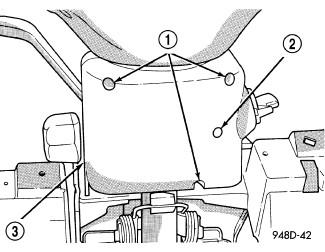

   Fig 4: Steering Column Shrouds

   Courtesy of CHRYSLER LLC
6. Install upper and lower shrouds.
7. Install key cylinder (cylinder retaining tab will depress only in the RUN position).
8. Connect the negative battery cable, tighten the nut to 10 N.m (90 in. lbs.).
9. Check for proper operation of ignition switch and key-in warning switch.
