TUBE, Exhaust Gas Recirculation (EGR): Installation: Installation

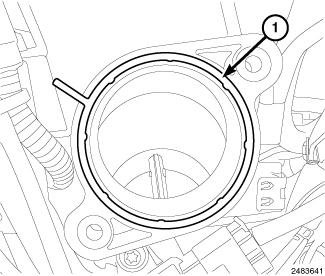

Fig 1: Installing/Removing EGR Tube Gasket Onto EGR Actuator

Courtesy of CHRYSLER LLC

1. Clean all gasket mating surfaces.
2. Install a new EGR tube gasket (1) onto the EGR actuator.

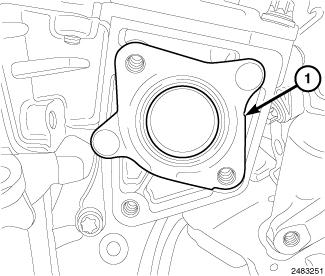

   Fig 2: Installing/Removing EGR Tube Gasket Onto Mixing Chamber

   Courtesy of CHRYSLER LLC
3. Install a new EGR tube gasket (1) onto the mixing chamber.

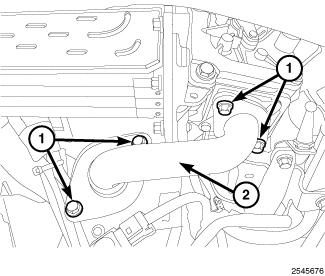

   Fig 3: Identifying Bolts & ERG Tube

   Courtesy of CHRYSLER LLC
4. Install the EGR tube (2). Tighten bolts (1) to 9 N.m (80 in. lbs.).
5. Install the engine cover.
6. Connect the negative battery cable.
