P1463-Fuel Level Output Circuit High: Notes

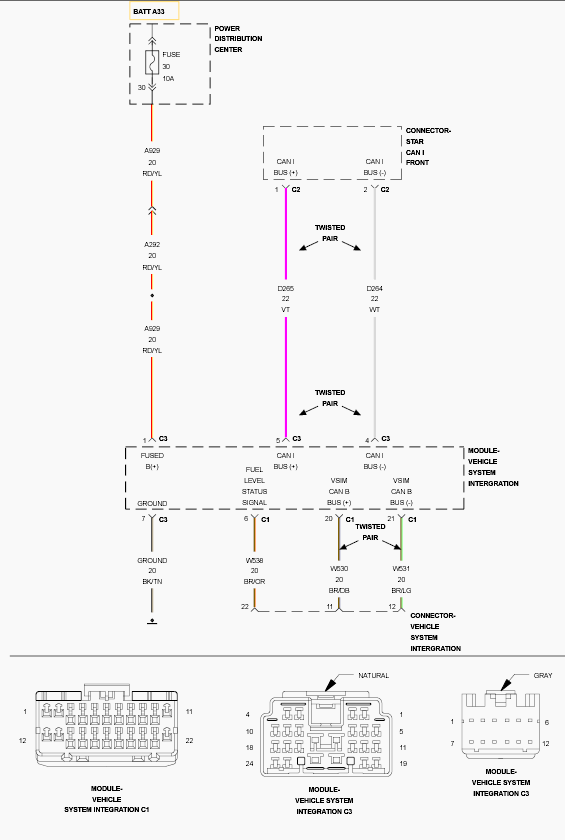

Fig 1: Vehicle System Integration Module Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
