5.7L Block Heater - Installation
Courtesy of CHRYSLER LLC
- Thoroughly clean cylinder block core hole and block heater seat.

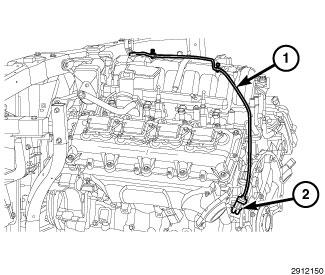

- Insert block heater assembly (2) into the block.
- With block heater (2) fully seated, tighten bolt to 2 N.m (17 in. lbs.) torque.
- Connect power cord (1) to block heater assembly (2).
