P0141-O2 Sensor 1/2 Heater Performance: Notes

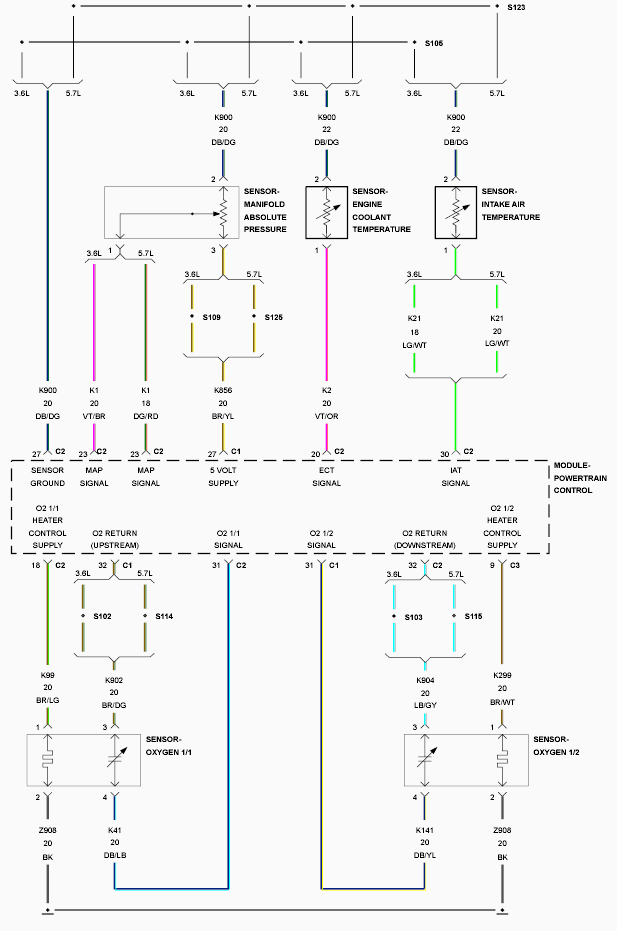

Fig 1: O2 Sensor Circuit Schematic
GC0137376Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
