P0221-Throttle Position Sensor 2 Performance: Notes

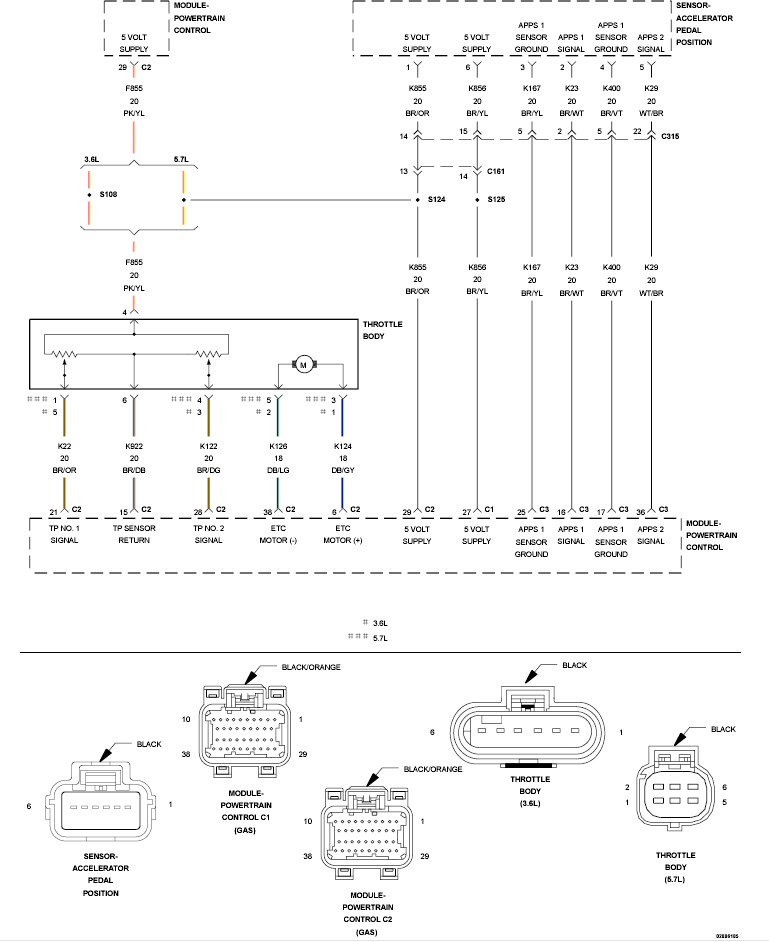

Fig 1: Electronic Throttle Control (ETC) System Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
