P0330-Knock Sensor 2 Circuit: Notes

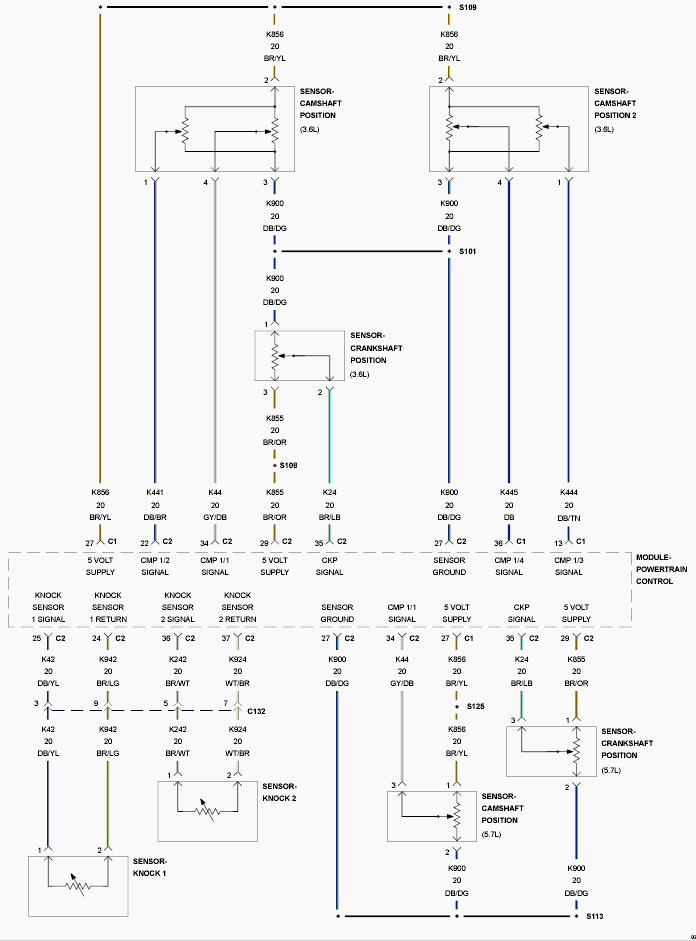

Fig 1: Crankshaft Position System Circuit Schematic
GC0138767Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
