P2504-Charging System Output High: Notes

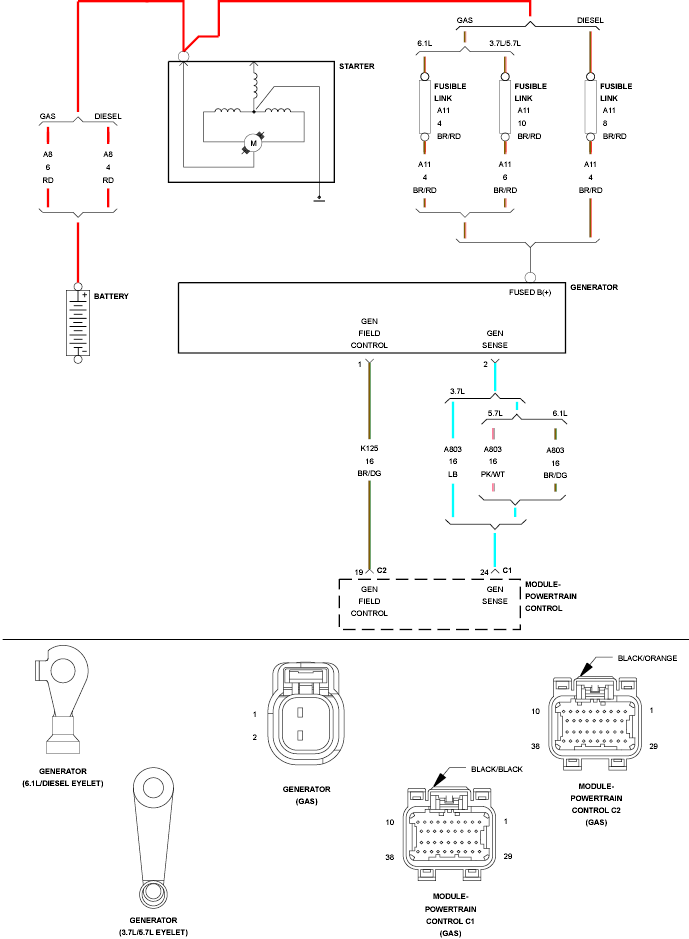

Fig 1: Charging System Circuit Schematic
GC0138785Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
