SENSOR, Air Temperature, Intake: Installation: 3.7L
WARNING: This page is about a different car, the 2011 RAM Dakota. However, it is still accessible from the selected car via links, so may be relevant.

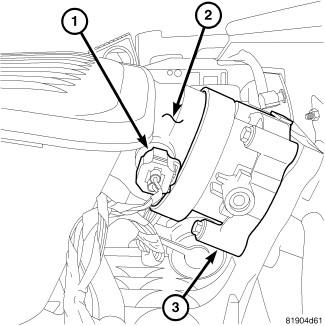

Courtesy of CHRYSLER LLC
| 1 - IAT SENSOR |
| 2 - SENSOR O-RING |
| 3 - RELEASE TAB |
- Check condition of sensor o-ring (2).
Courtesy of CHRYSLER LLC
- Clean sensor mounting hole in air intake tube.
- Position sensor into air intake tube and rotate clockwise until past release tab.
- Install electrical connector (1).
