P0336-Crankshaft Position Sensor Performance: Notes

Fig 1: Variable Valve Timing (VVT) Circuit Schematic

Courtesy of CHRYSLER LLC

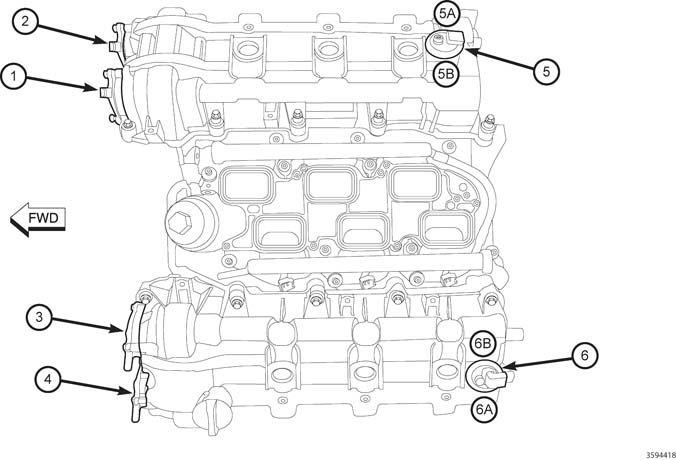

Fig 2: Identifying VVT Component Locations

Courtesy of CHRYSLER LLC

NOTE:

The CMP sensor is a dual read sensor reading both camshafts of it's correlating bank.

3.6L VVT Component Locations
CALLOUT	DESCRIPTION
1	VVT Actuator Bank 1 Position 1 (Intake)
2	VVT Actuator Bank 1 Position 2 (Exhaust)
3	VVT Actuator Bank 2 Position 1 (Intake)
4	VVT Actuator Bank 2 Position 2 (Exhaust)
5	Bank 1 Camshaft Sensor
5A	CMP Bank 1 Sensor 1 (Exhaust)
5B	CMP Bank 1 Sensor 2 (Intake)
6	Bank 2 Camshaft Sensor
6A	CMP Bank 2 Sensor 1 (Exhaust)
6B	CMP Bank 2 Sensor 2 (Intake)

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
