P0533-A/C Pressure Sensor Circuit High: Notes

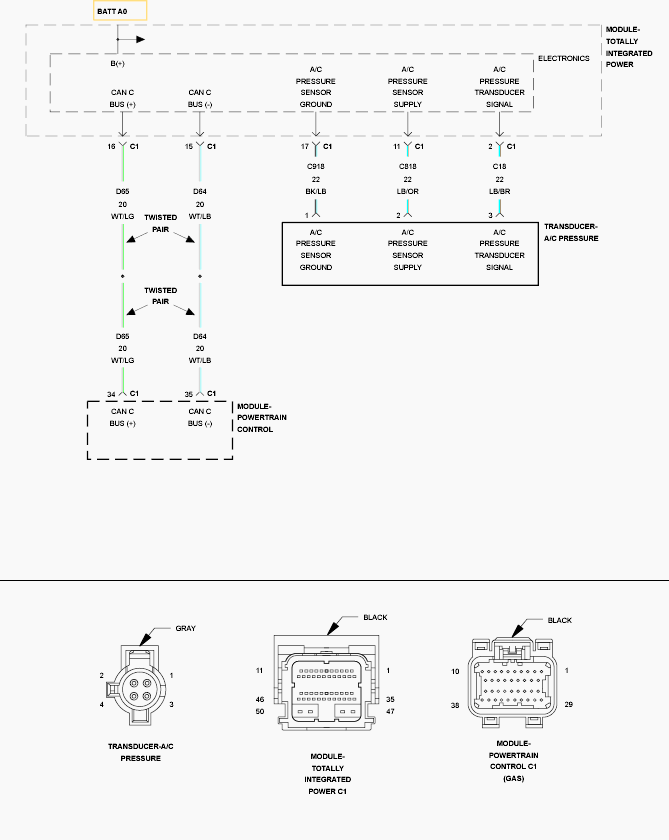

Fig 1: A/C Pressure Sensor Circuit Wiring Diagram

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
