P0571-Brake Switch 1 Performance: Notes

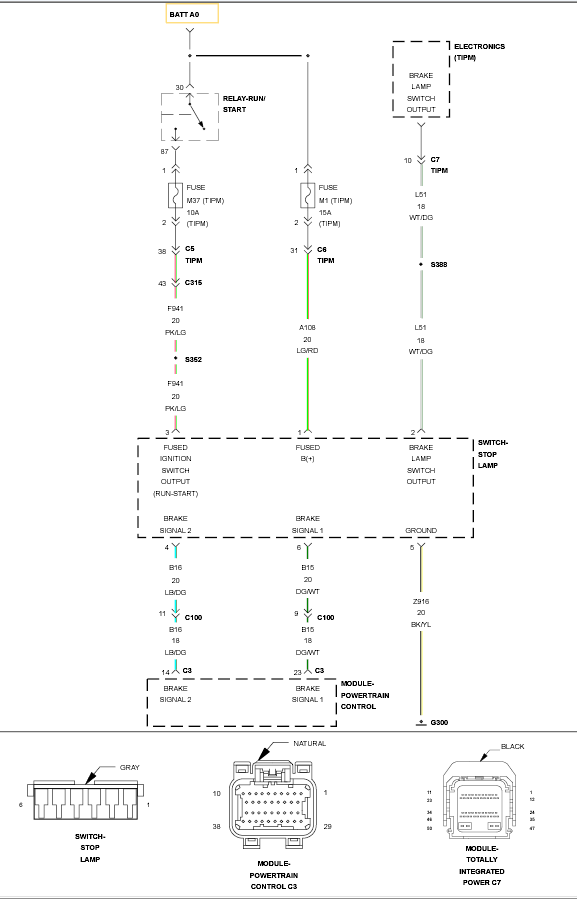

Fig 1: Brake Pedal Switch Wiring Diagram
GC0151512Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
