Draining Fuel Tank
The fuel system may be under constant fuel pressure even with the engine off. This pressure must be released before servicing the fuel tank.
Two different procedures may be used to drain fuel tank: through the fuel fill fitting on tank, or using a diagnostic scan tool to activate the fuel pump relay.
The quickest draining procedure involves removing the rubber fuel fill hose at the fuel tank fill fitting.
As an alternative procedure, the electric fuel pump may be activated allowing tank to be drained at fuel rail connection. Refer to scan tool for fuel pump activation procedures. Before disconnecting fuel line at fuel rail, release fuel pressure. Refer to Fuel Delivery, Standard Procedure . Attach end of Fuel Pressure Test Adapter (special tool #6631, Adapter, Fuel Pressure) or (special tool #6539, Adapter, Fuel Pressure) at fuel rail disconnection (Disconnect Tool (special tool #6631, Adapter, Fuel Pressure) is used on 5/16" fuel lines while (special tool #6539, Adapter, Fuel Pressure) is used on 3/8" fuel lines). Position opposite end of this hose tool to an approved gasoline draining station. Activate fuel pump and drain tank until empty.
If electric fuel pump is not operating, fuel must be drained through fuel fill fitting at tank. Refer to following procedures.
- Release fuel system pressure.
- Raise vehicle.
- Remove left-rear tire/wheel.
- Remove plastic fender liner in front of left-rear tire/wheel.
- Thoroughly clean area around fuel fill fitting and rubber fuel fill hose at fuel tank.

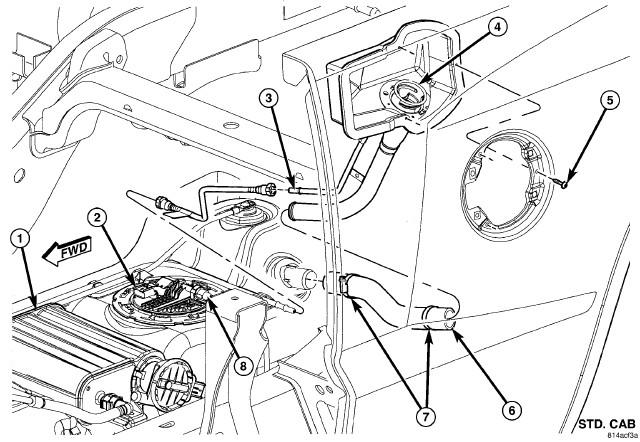

- Models with standard cabs: Loosen clamps (7) and disconnect rubber fuel fill hose at fuel tank fitting. Using an approved gas holding tank, drain fuel tank through this fitting.

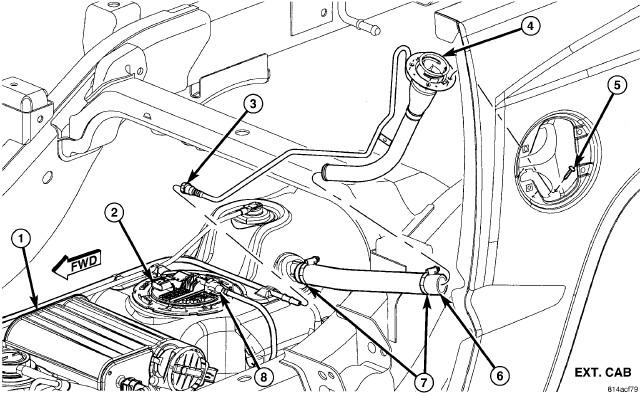

- Models with extended cabs: Loosen clamps (7) and disconnect rubber fuel fill hose at fuel tank fitting. Using an approved gas holding tank, drain fuel tank through this fitting.
