P0622-Generator Field Control Circuit: Notes

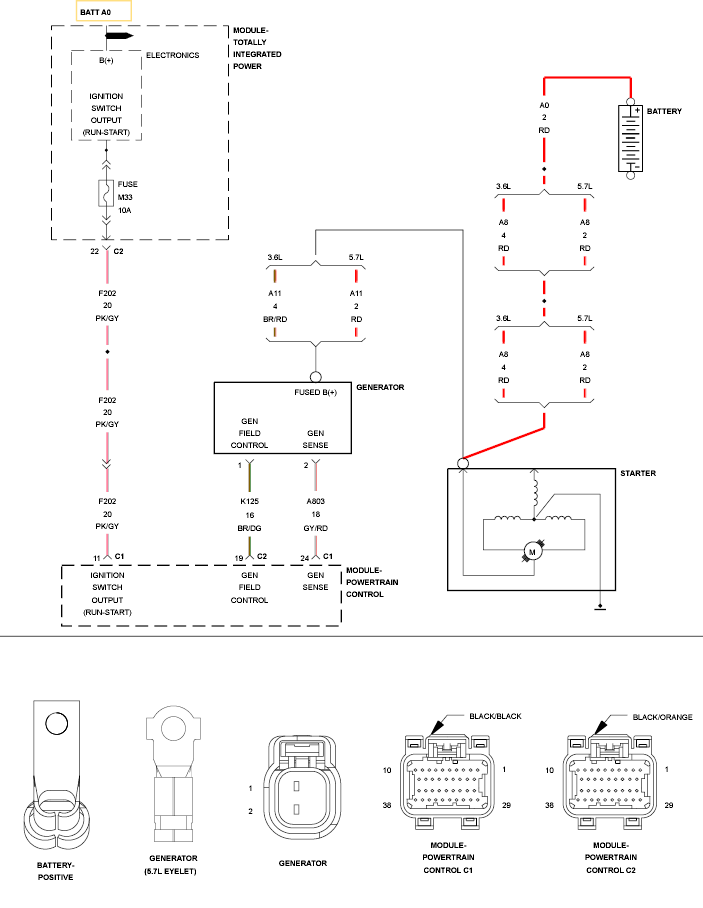

Fig 1: Charging System Circuit Schematic
GC0138780Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article  .
