P0591-Speed Control Switch 2 Performance: Notes

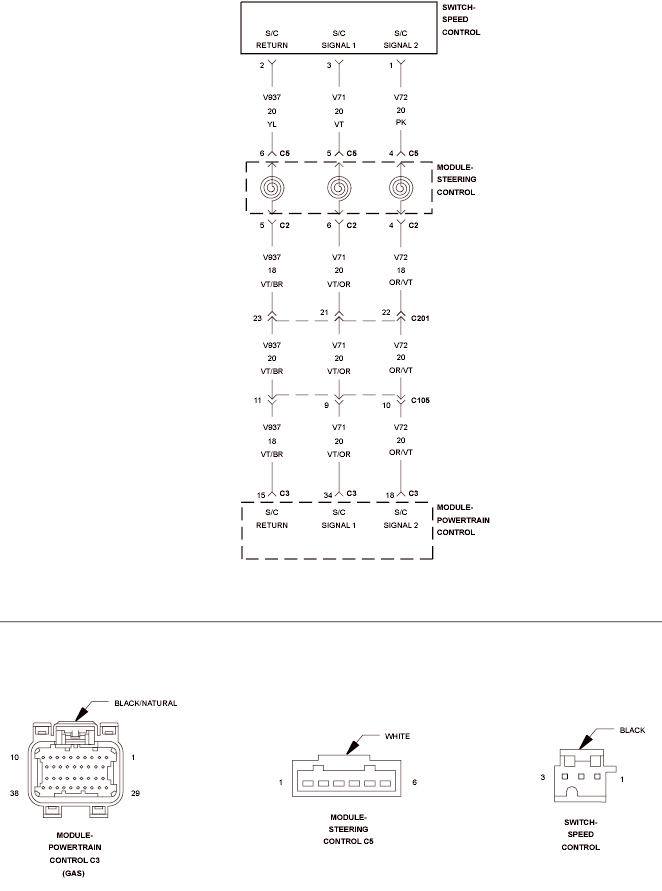

Fig 1: Speed Control Switch Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
