P0622-Generator Field Control Circuit: Notes

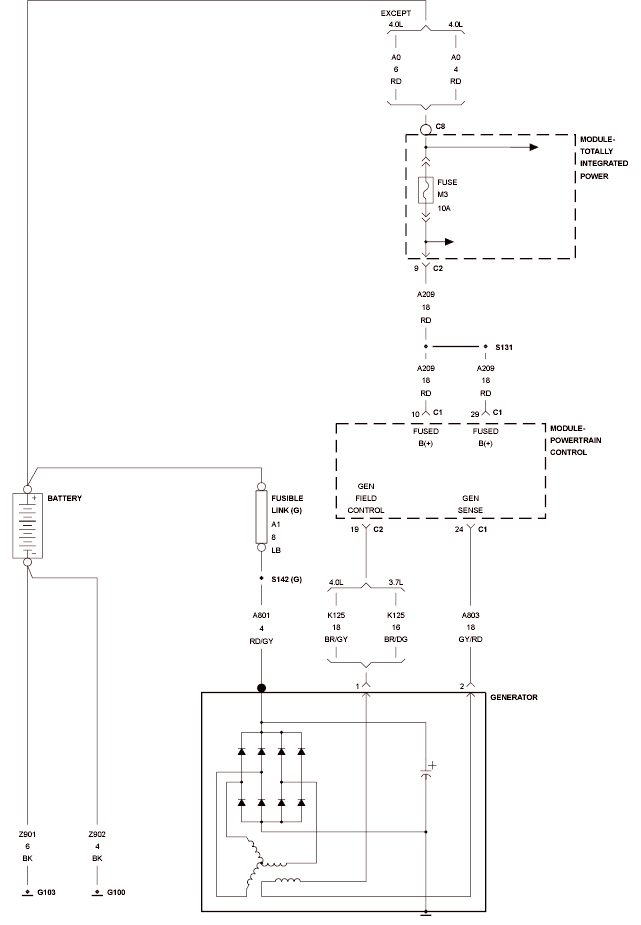

Fig 1: Checking Generator Circuit Schematic
GC0128393Courtesy of CHRYSLER LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
