P0330-Knock Sensor 2 Circuit: Notes

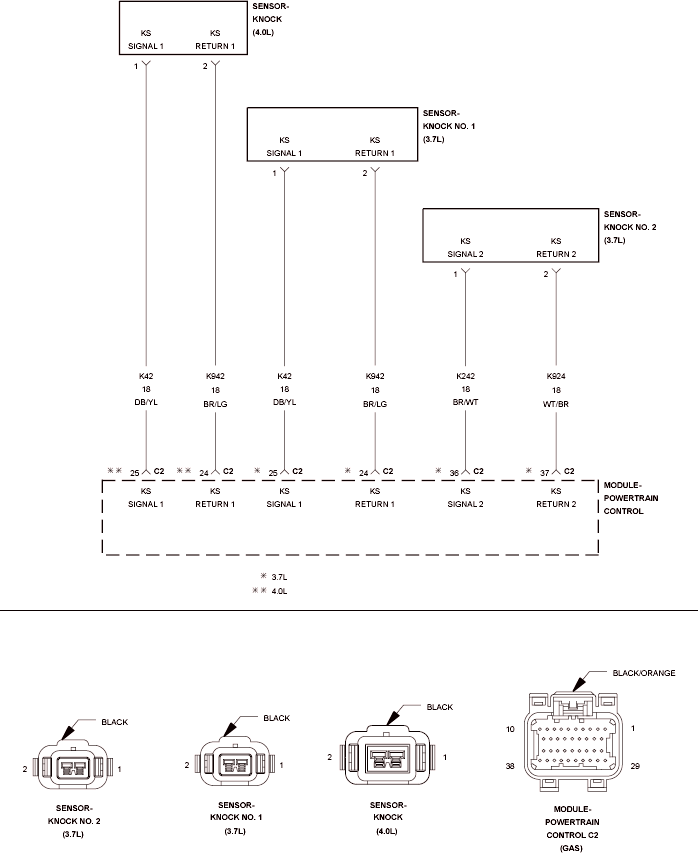

Fig 1: Knock Sensor Circuit Schematic
GC0128369Courtesy of CHRYSLER LLC

For a complete wiring diagram refer to appropriate SYSTEM WIRING DIAGRAMS article  .
