Sensor, Camshaft Position: Installation: Diesel

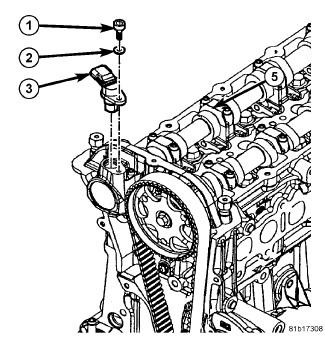

Fig 1: CMP Location

Courtesy of CHRYSLER GROUP, LLC

1. Position CMP sensor (3) into mounting hole.
2. Install sensor mounting bolt (1) and washer (2). Tighten bolt to 11 Nm (8 ft. lbs.).
3. Connect electrical connector to CMP sensor (3).
4. Reconnect the negative battery cable.
