B2550-Convertible Top Panel Latch Limit Switch Performance: Notes

WARNING: This page is about a different car, the 2012 Dodge Avenger and 2012 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

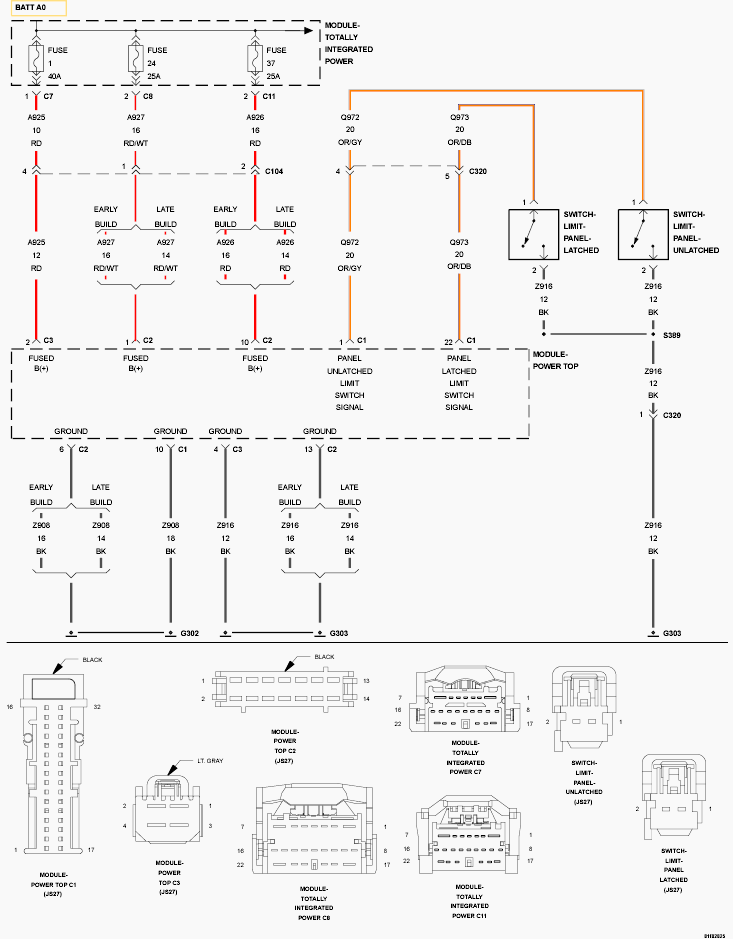

Fig 1: Convertible Top Panel Latch/Panel Unlatch Limit Switch Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

NOTE:

This test only applies to the Retractable Hardtop vehicle. These latches and switches are sometimes referred to as Roof Panel-to-Panel latches and switches.
