Module, Compass: Installation: Installation

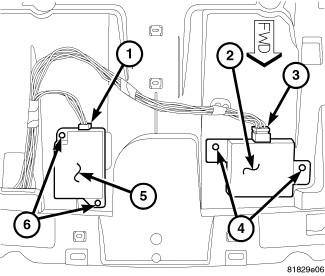

Fig 1: Remote Compass Module

Courtesy of CHRYSLER GROUP, LLC

NOTE:

RHD model shown in illustration. LHD model similar.

Position the Remote Compass Module (RCM) (5) on top of the instrument panel.
Install the screws (6) that secure the RCM to the instrument panel.
Connect the RCM electrical connector (1).
Install the instrument panel top cover. Refer to COVER, INSTRUMENT PANEL, INSTALLATION .
Connect the battery negative cable.
