P2784-Input Speed Sensor 1/2 Correlation: Notes

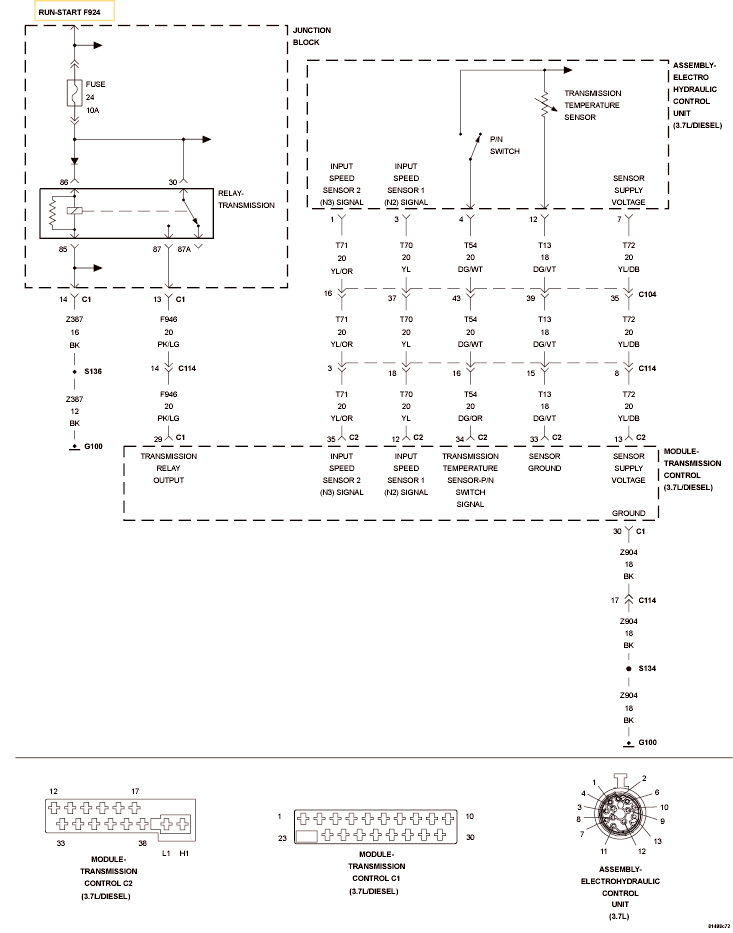

Fig 1: Transmission Control Module/Electrohydraulic Control Unit Circuit Wiring Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
