Sensor, Seat Track Position: Description: Description

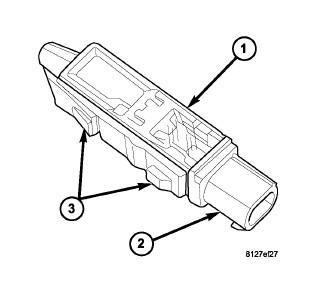

The Seat Track Position Sensor (STPS) (1) is a Hall Effect-type sensor. This sensor consists of a Hall Effect Integrated Circuit (IC) chip encased in potting material within a cavity of the molded plastic sensor housing.
The STPS housing has two integral snap features (3) and snaps into a stamped metal bracket located on the inboard side of one of the seat adjuster tracks on the front seat of vehicles so equipped. A molded connector receptacle (2) integral to the STPS housing is connected to the vehicle electrical system through a connector and take out of the seat wire harness beneath the front seat cushion frame.
The STPS cannot be adjusted or repaired and, if ineffective or damaged, the entire STPS unit must be replaced.
