P0607-45-Ecu Internal Performance-Program Memory Failure: Notes

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

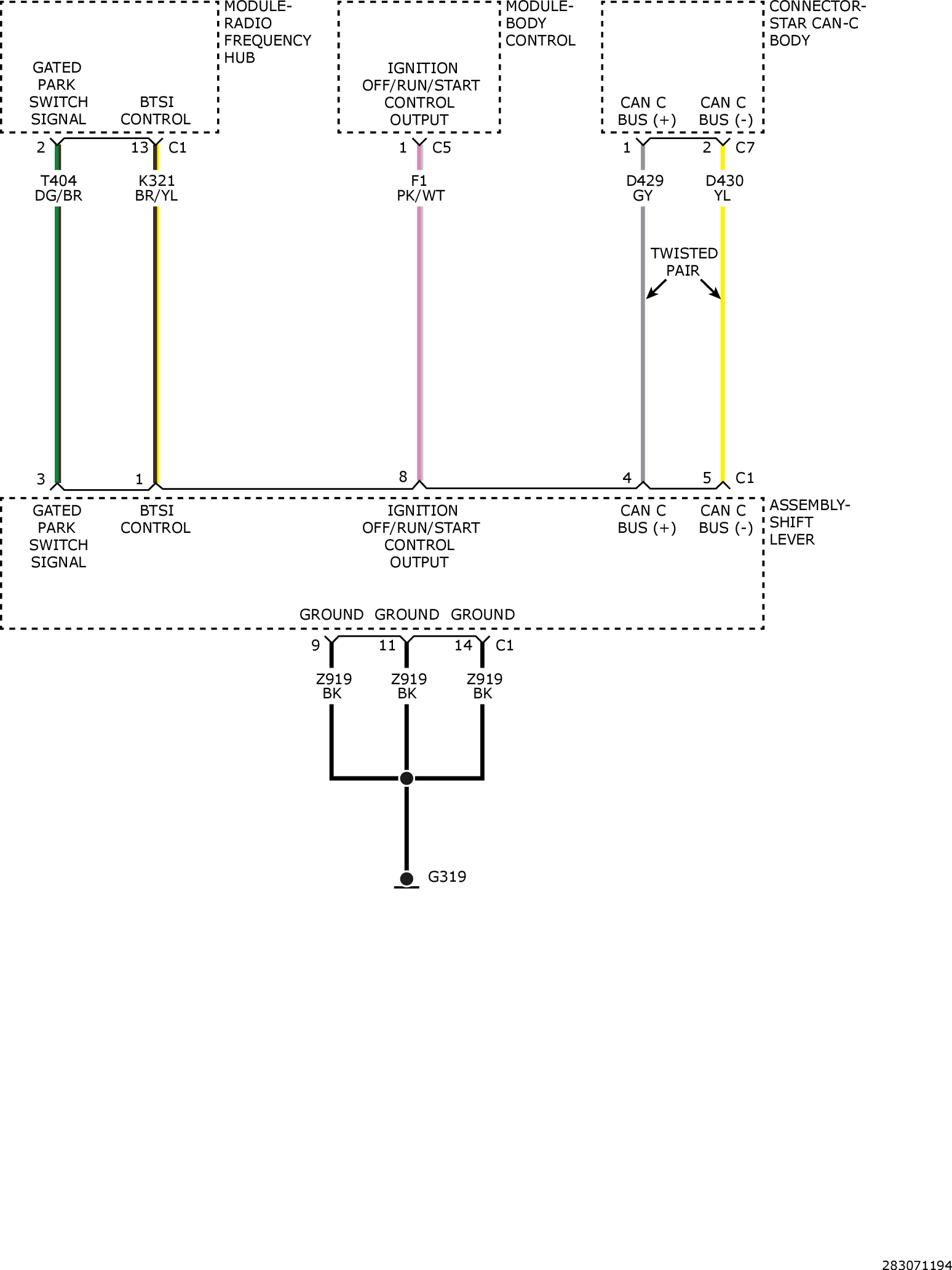

Fig 1: Electronic Shift Module Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
