Module, Hands Free: Installation: Installation

WARNING: This page is about a different car, the 2013 Dodge Avenger and 2013 Chrysler 200. However, it is still accessible from the selected car via links, so may be relevant.

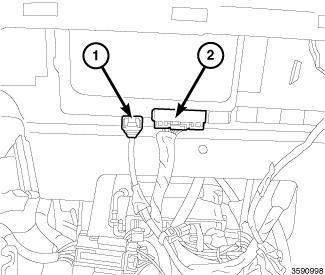

Fig 1: Connector & USB Connector
GC0147228Courtesy of CHRYSLER GROUP, LLC
  1. Connect the electrical connector (2) to the HFM and the USB connector (1) if equipped.
  2. Install the hands free module mounting fasteners.

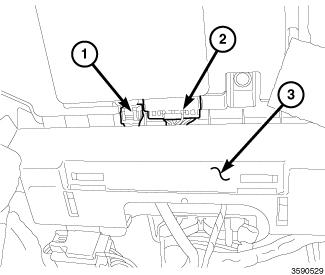

    Fig 2: Trim Piece & Connectors
    GC0147227Courtesy of CHRYSLER GROUP, LLC
  3. Install the trim piece (3) in front of the Hands Free Module (HFM).
  4. Install the HVAC control panel. Refer to CONTROL, A/C AND HEATER, INSTALLATION .
  5. Connect the battery negative cable.
