Module, Power Inverter: Installation: Installation

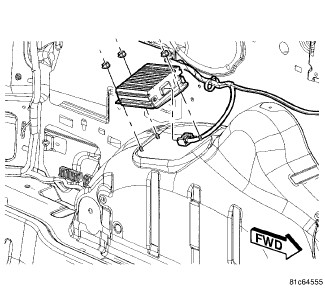

Fig 1: Identifying Inverter Module

Courtesy of CHRYSLER GROUP, LLC

1. Install the inverter module and install the mounting fasteners.
2. Connect the electrical connector.
3. Install the left rear quarter trim panel. Refer to PANEL, QUARTER TRIM, INSTALLATION .
4. Connect the battery negative cable.
