Sensor, Fuel Temperature: Installation: Installation

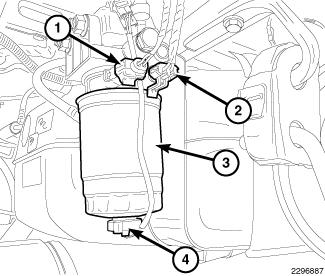

Fig 1: Fuel Filter/Water Separator Assembly

Courtesy of CHRYSLER GROUP, LLC

1. Install the fuel filter/water separator assembly. Refer to SEPARATOR AND FILTER, FUEL AND WATER, INSTALLATION .
2. Install the fuel filter (3).
